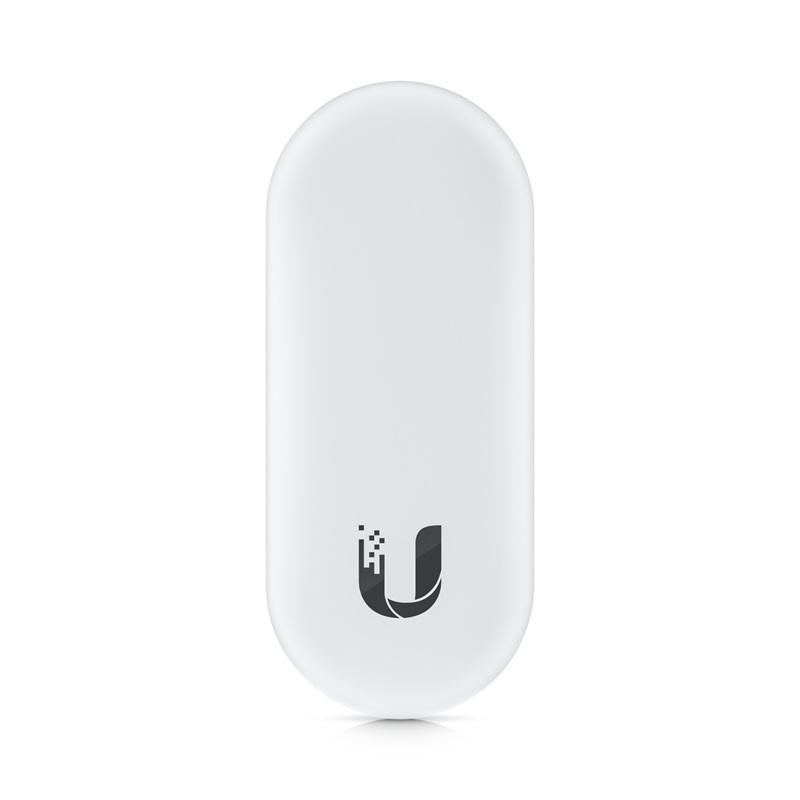

Ubiquiti UniFi Access Reader Lite

$219.00 +GST
Login for your price
50+ In Stock
SKU: UA-Reader-Lite
QuantityPrice
1 - 4$219.00
5 - 9$213.53
10 - 19$208.05
20+$197.10
Ubiquiti UniFi Access Reader Lite
Warranty
Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*
Description
Specifications
Resources
Package Contents
Ubiquiti UniFi Access Reader Lite, UA-Reader Lite

A convenient door access scanner supporting NFC reader and handwave door unlocking.
Features
  • Unlock using an NFC card or UniFi Identity mobile app
  • Additional handwave unlock functionality
  • Connects to UniFi Access Hub using PoE
Details
Manufacturer's CodeUA-Reader Lite
Networking interface10/100 MbE
Max. power consumption6W
Power methodPoE, UL 294 Power-limited Class 2 PSU, UL 60950-1/62368-1 LPS/PS2 PSU
Supported voltage range44–57V DC
LEDsWhite/blue (Learn more)
Button(1) Factory reset
ConnectivityEthernet, BLE 4.1
NFC frequency13.56 MHz
NFC reading range<30 mm
NFC standardsISO 14443A, 14443B, 15693
NFC technologyNFC Tag 1, 2, 3, 4, 5, MIFARE Classic, MIFARE Plus, MIFARE Ultralight, MIFARE DESFire
Operating environmentOutdoor use
Ambient operating temperature-20 to 40° C (-4 to 104° F)
Ambient operating humidity5 to 90% noncondensing
Software informationThe software version of a product can be checked at https://unifi.ui.com
UL 294 levelDestructive attack: Level I, Line security: Level I, Endurance: Level I, Standby power: Level I
UL 294 statementCompliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
PoE cabling requirementsCable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable.
CAN/ULC-60839-11-1 GradeGrade assignment: I
CertificationsCE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision levelUA-Reader Lite, V02
Dimensions94.9 x 40 x 31.1 mm (3.7 x 1.6 x 1.2")
Weight67 g (2.4 oz)
Enclosure materialPolycarbonate
Mounting optionsWall-mount, gang box mount* The UA-Reader Lite must be installed either indoors or under a roof eave outdoors.
WeatherproofingIP54
Details
Power SupplyNot Included
Mount KitIncluded
100Mbps
Bluetooth , NFC
RJ45
2.4GHz
PoE (non standard)
