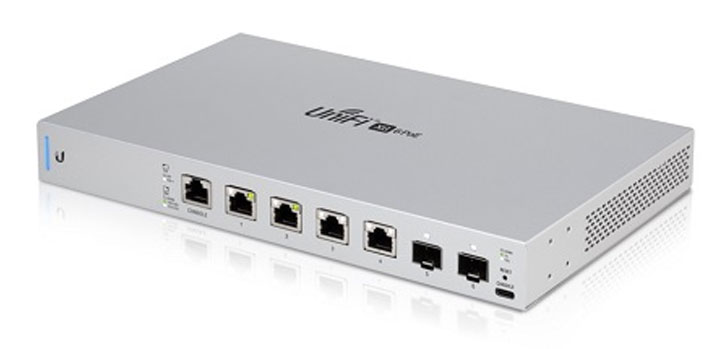

The Ubiquiti UniFi US-XG-6POE switch delivers robust performance, 1/2.5/5/10 Gigabit Ethernet ports with PoE++ support, SFP+ and intelligent switching for your networks. This UniFi Switch delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. Its auto-sensing PoE ports deliver up to 60W of power per port.
The UniFi Switch XG 6POE offers 802.3bt PoE++ on all four RJ45 ports; up to 60W per port for devices requiring additional power, such as the UniFi XG APs.
Designed for convenient management, the UniFi Controller software allows admins to configure and monitor the UniFi Switch and other UniFi devices using a graphical user interface. You can download it free as there is no separate software, licensing, or support fees.
The UniFi Switch XG 6POE offers 802.3bt PoE++ on all four RJ45 ports; up to 60W per port for devices requiring additional power, such as the UniFi XG APs.
Designed for convenient management, the UniFi Controller software allows admins to configure and monitor the UniFi Switch and other UniFi devices using a graphical user interface. You can download it free as there is no separate software, licensing, or support fees.
Features
- (4) 100/1000 Mbps and 2.5/5/10G RJ45 Ports
- (2) 1/10 SFP+ Ports
- (4) 802.bt PoE++ Ports
- Non-Blocking Throughput: 60 Gbps
- Switching Capacity: 120 Gbps
- Forwarding Rate: 89.3 Mbps
- Maximum self Power Consumption: 40W
- External 210W AC/DC Adapter (Included)
- DC Input Option (Redundant or Stand-Alone)
Details | |
---|---|
Manufacturer's Code | US-XG-6POE-AU |
Dimensions | 165 x 268.1 x 31.8 mm |
Weight | 1.3 kg (2.87 lb) |
Interfaces | Networking (4) 100/1000 Mbps and 2.5/5/10G RJ45 Ports, (2) 1/10G SFP+ Ethernet Ports |
Management | Ethernet In-Band, (1) RJ45 Serial Port Out-of-Band, (1) USB Type C Port Out-of-Band |
Power Method | 54VDC, 3.88A Power Adapter (Included) or DC Input with Terminal Block |
Power Supply | External AC/DC Adapter (Included) or DC Power Source |
Supported Voltage Range | 44 to 57VDC |
Max. Power Consumption (Excluding PoE Output) | 40W |
LEDs | System - Status, RJ45 Data Ports - PoE; Speed/Link/Activity, SFP+ Data Ports - Link/Activity |
ESD/EMP Protection | Air: ± 18 kV, Contact: ± 12 kV |
Shock and Vibration | ETSI300-019-1.4 Standard |
Operating Temperature | -5 to 45° C (23 to 113° F) |
Operating Humidity | 5 to 95% Noncondensing |
Certifications | CE, FCC, IC |
PoE Interfaces | PoE++ IEEE 802.3bt, (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-) |
Max. 802.3bt Wattage per Port by PSE | 60W |
Voltage Range 802.3af | Mode 44-57V |
Voltage Range 802.3at/bt | Mode 50-57V |
Details | |
---|---|
Power Supply | DC Power Adapter Included |
Mounting Hardware | Rack mount accessory sold separately |
Warranty | Standard 12 Month RTB |
1Gbps , 2.5Gbps , 5Gbps , 10Gbps
PoE (802.3af/at) , POE (802.3bt)
