Description
Specifications
Resources
Package Contents

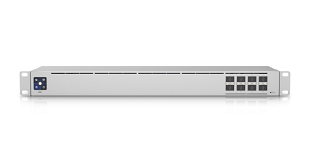

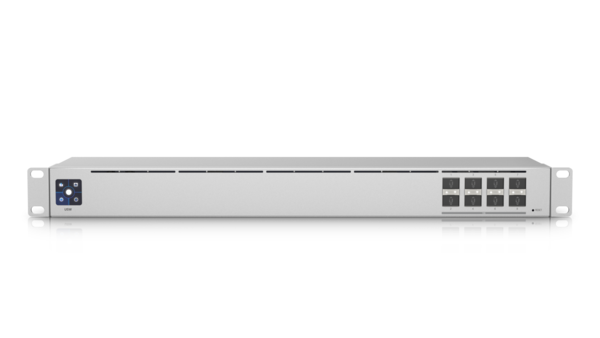

The Ubiquiti Unifi Switch Aggregation (USW-Aggregation) is a managed Layer 2 switch with eight 10G SFP+ ports, offering link aggregation for higher capacity and increased availability. USW-Aggregation features Layer 2 capabilities and supports high-bandwidth links, making it ideal for aggregation switching to any UniFi solution that deploys various interconnect topologies.
Max. number of supported SFP+ modules:
UACC-OM-MM-10G: 8
UACC-OM-SM-10G: 8
UACC-CM-RJ45-10G: 4
UACC-CM-RJ45-MG: 4
Max. number of supported SFP+ modules:
UACC-OM-MM-10G: 8
UACC-OM-SM-10G: 8
UACC-CM-RJ45-10G: 4
UACC-CM-RJ45-MG: 4
Features
- (8) 10G SFP+ Ports
- 160 Gbps switching capacity
- 1.3" Touchscreen with AR switch management
- Fanless, 4.7" depth compact enclosure
- 1U Rackmountable (kit included)
- Managed by UniFi Network Controller (Version 5.43.13 or higher)
Details | |
---|---|
Manufacturer's Code | USW-Aggregation |
Enclosure Material | SGCC Steel |
Total Non-Blocking Throughput | 80 Gbps |
Switching Capacity | 160 Gbps |
Forwarding Rate | 119.04 Mpps |
Max. Power Consumption | 30W |
Power Method | Universal AC Input: 100-240VAC, 50/60 Hz |
Power Supply | AC/DC, Internal, 36W |
Management Interface | Ethernet In-Band |
Modes | SMB Layer 2 Gigabit Ethernet Switch |
ESD/EMP Protection | Air: ± 16kV, Contact: ± 12kV |
Operating Temperature | -5 to 40° C(23 to 104° F) |
Operating Humidity | 10 - 90% Noncondensing |
Certifications | CE, FCC, IC |
Dimensions | 442.4 x 120 x 43.7 mm (17.42 x 4.72 x 1.72") |
Weight | Without Mount: 2.65 kg (5.84 lb), With Mount: 2.74 kg (6.04 lb) |
Details | |
---|---|
Power Supply | IEC Power Cord |
Mounting Hardware | 1U Rackmount |
SFP+
