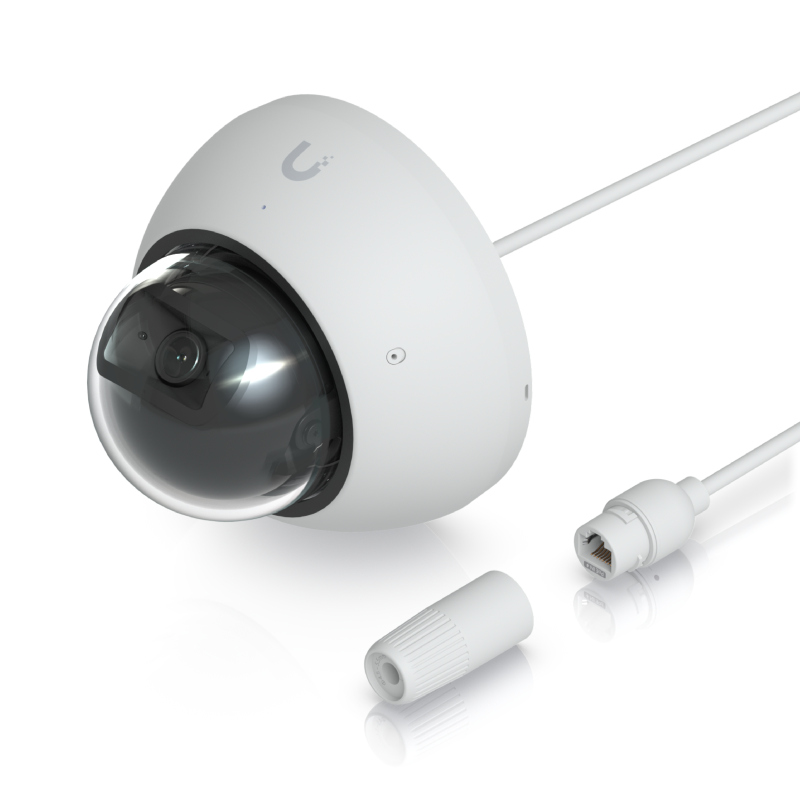

The UniFi Protect AI Dome is an all-weather, vandal-proof 4K PoE dome camera with enhanced AI capabilities and long-range IR night vision.
Features
- 4K (8MP) video resolution
- Ultra-wide viewing angle (109.9°)
- 40 m IR night vision
- Advanced AI: Face and license plate recognition
- Record audio with an integrated microphones
- Micro SD card support for edge recording (minimum 64GB, not included)
- Connect and power using PoE+
- Weatherproof (outdoor exposed)
| Details | |
|---|---|
| Manufacturer's Code | UVC-AI-Dome-W |
| Dimensions | Ø118 x 90.8 mm |
| Weight | 700 g |
| Enclosure Material | Aluminum alloy, polycarbonate |
| Weatherproofing | IP66 |
| Resistance | IK10 |
| Cable Jacket Enclosure Dimensions | Ø20 x 70.6 mm |
| Cable Jacket Enclosure Material | Thermoplastic elastomer, polycarbonate, silicone rubber |
| Cable Length | 30 cm |
| Cable Diameter | 4.5 mm |
| Cable Jacket Material | Thermoplastic elastomer |
| Cable Connector Type | RJ45 |
| Sensor | 1/1.8" 8MP |
| Lens | Fixed focal length |
| View Angle | H: 109.9°, V: 56.7°, D: 134.1° |
| Night Mode | Built-in IR LED illumination and IR cut filter |
| IR Distance | 40 m |
| Resolution | 8MP 3840 x 2160 (16:9) |
| Maximum Frame Rate | 30 FPS |
| Processor | Quad-core Arm® Cortex®-A53 based chip |
| Networking Interface | GbE RJ45 port |
| Maximum Power Consumption | 10W |
| Power Method | PoE |
| Supported Voltage Range | 42.5–57V DC |
| LED | R/G/B/W |
| Mounting | Ceiling, arm, wall, pendant mount, junction box |
| Ambient Operating Temperature | -30 to 50º C |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| Microphone | Yes (Can be disabled) |
| Speaker | No |
| Details | |
|---|---|
| Power Supply | Not Included |
| Mounting Kit | Wall and Ceiling Kit Included |
UniFi
1Gbps
RJ45
PoE (802.3af/at)
