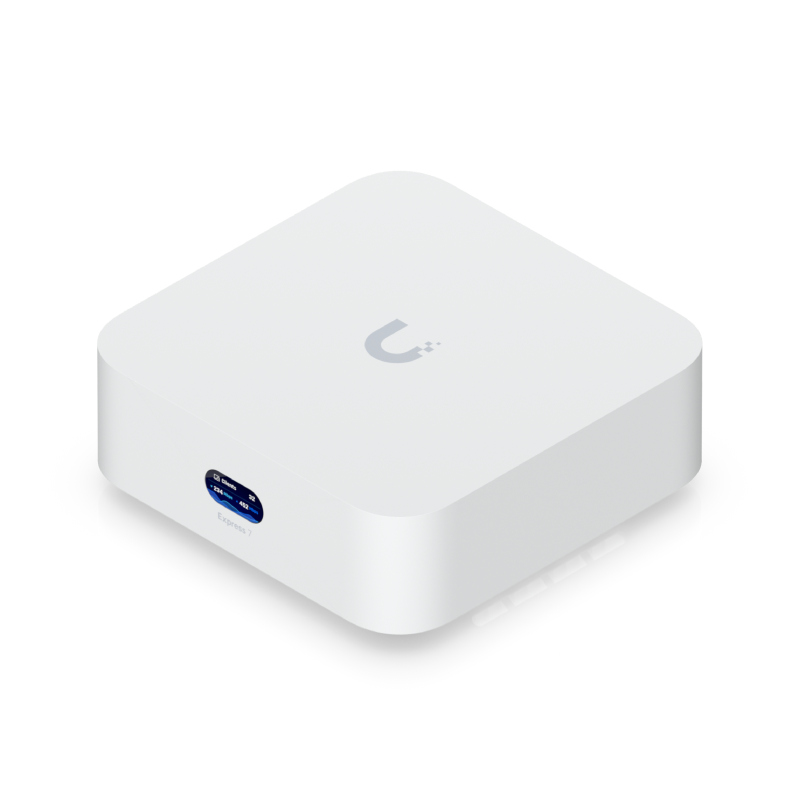

Ubiquiti UniFi Express 7 Cloud Gateway Mesh-scalable, super-compact 10G Cloud Gateway with integrated WiFi 7. The powerfully compact UniFi Express 7 is a mesh-scalable, super-compact 10G Cloud Gateway with integrated WiFi 7.
Features
- Built-in WiFi 7 (2x2 MIMO)
- Manages 30+ UniFi Network devices and 300+ clients
- (1) 10 GbE RJ45WAN port
- (1) 2.5 GbE RJ45 LAN port to extend network
- 0.96" LCM status display
| Details | |
|---|---|
| Manufacturer's Code | UX7 |
| Dimensions | 117 x 117 x 42.5 mm |
| UniFi Application Suite | Network |
| Managed UniFi Devices | 30 |
| Simultaneous Users Connected | 300 |
| Default WAN Ports | (1) 10 GbE RJ45 |
| LAN Ports | (1) 2.5 GbE RJ45 |
| IDS/IPS Throughput | 2.3 Gbps |
| WiFi Standard | 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7) |
| MIMO | 2.4 GHz, 5 GHz, 6 GHz @ 2 x 2 (DL/UL MU-MIMO) |
| Antenna Gain | 2.4 GHz @ 4 dBi, 5 GHz @ 7 dBi, 6 GHz @ 6 dBi |
| Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
| Maximum Power Consumption | 22W |
| Power Method | USB type C (5V DC/5A) |
| Power Supply | USB type C (5V DC/5A) (Adapter included) |
| Maximum TX Power | 2.4 GHz @ 23 dBm, 5 GHz @ 26 dBm, 6 GHz @ 24 dBm |
| Supported Voltage Range | 100-240V AC |
| Processor | Quad-core ARM® Cortex®-A53 at 1.5 GHz |
| System Memory | 3 GB |
| Weight | 422 g |
| Enclosure Material | Polycarbonate |
| LCM Display | 0.96" status display |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| Ambient Operating Temperature | -10 to 40° C |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Details | |
|---|---|
| Power Supply | USB-C Power Adapter (Included) |
| Warranty | Standard 12 Month RTB |
UniFi
1Gbps
Wi-Fi 7
2.4GHz , 5GHz , 6-38GHz
