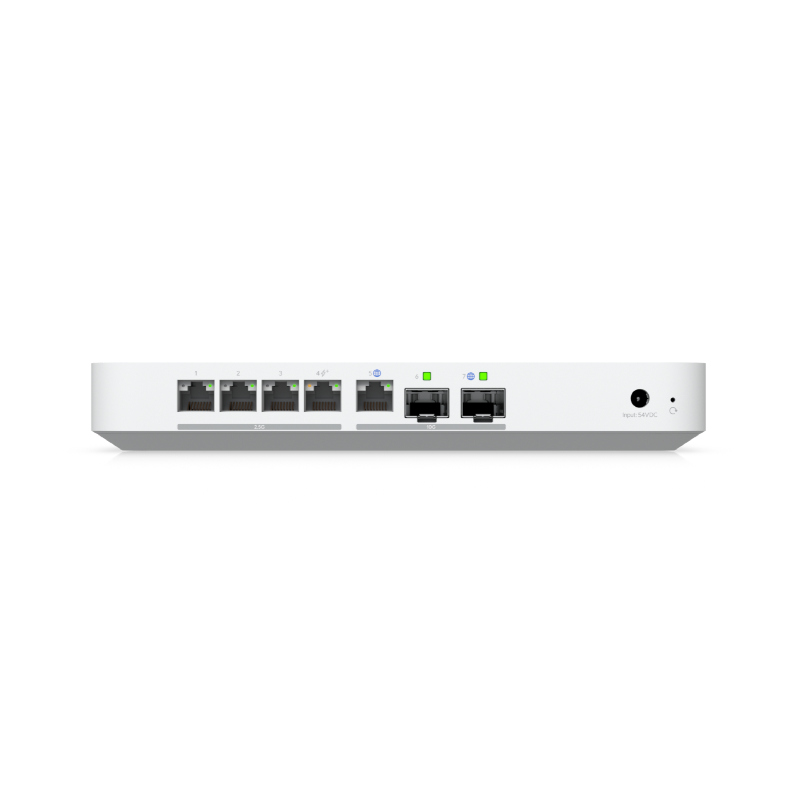

Ubiquiti Desktop 10G independent gateway with integrated 4-port 2.5 GbE switch. The UniFi Gateway Fiber is a desktop 10G independent gateway with integrated 4-port 2.5 GbE switch
Please note: The UXG-Fiber is managed with a Cloud Key (UCK-G2-Plus), UniFi Network Server for Linux/Mac/Windows or Official UniFi Cloud Hosting
Please note: The UXG-Fiber is managed with a Cloud Key (UCK-G2-Plus), UniFi Network Server for Linux/Mac/Windows or Official UniFi Cloud Hosting
Features
- Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server
- 5 Gbps routing with IDS/IPS
- (1) 10G SFP+ and (1) 10 GbE RJ45 WAN port
- (1) 10G SFP+ LAN port
- Integrated 4-port switch with (1) PoE+ port
| Details | |
|---|---|
| Manufacturer's Code | UXG-Fiber |
| Dimensions | 212.8 x 127.6 x 30 mm |
| Default WAN Ports | (1) 10G SFP+, (1) 10 GbE RJ45 |
| LAN Ports | (1) 10G SFP+, (4) 2.5 GbE RJ45 |
| IDS/IPS Throughput | 5 Gbps |
| PoE Budget | 30W |
| Maximum PoE Wattage per Port by PSE | PoE+ @ 30W |
| Voltage Range PoE Mode | 50—57V |
| Maximum Power Consumption | 25W (Excluding PoE output) |
| Power Method | DC jack (54V DC/1.1A) |
| Power Supply | 54V DC/1.1A (Adapter included) |
| Supported Voltage Range | 100—240V AC |
| Processor | Quad-core ARM® Cortex®-A73 at 2.2 GHz |
| System Memory | 2 GB |
| Weight | 605 g |
| Enclosure Material | Polycarbonate |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| Ambient Operating Temperature | 0 to 40° C |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Details | |
|---|---|
| Power Supply | USB-C Power Adapter (Included) |
| Warranty | Standard 12 Month RTB |
UniFi
1Gbps
RJ45
PoE (802.3af/at)
