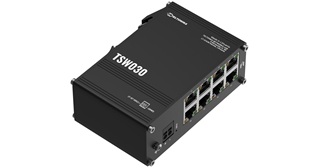

Teltonika TSW030 8 x 10/100 Port Compact DIN Rail Mountable Ethernet Switch

$98.00 +GST

3 In Stock

SKU: TSW030

Quantity	Price
1 - 4	$98.00
5 - 9	$95.55
10 - 19	$93.10
20+	$88.20

Data Sheet

Teltonika TSW030 8 x 10/100 Port Ethernet Switch Compact DIN Rail Mountable, Low Power Consumption

Warranty

Back to: Unmanaged Switches

Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*

Description
Reviews

Description

Specifications

Resources

Package Contents

Teltonika TSW030 8 x 10/100 Port Ethernet Switch Compact DIN Rail Mountable

The TSW030 is a cost-efficient unmanaged Ethernet switch, featuring eight 10/100 RJ45 ports and integrated DIN rail mounting. This compact and rugged 8-port switch includes a 2-pin power input and low power consumption of up to 0.5 W when idle and a maximum of up to 1.5 W. These make this plug-and-play switch perfect for industrial applications requiring to connect up to eight devices.

Features

2-pin Power Input Simple and suitable for industrial applications
Low Power Consumption Up to 0.5 W when idle, up to 1.5 W maximum
Integrated DIN Rail for Easy mounting for plug-and-play deployment
Eight 10/100 Mbps Ethernet ports

Details
Product code	TSW030000000
Ethernet	8 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover
IEEE 802.3 series standards	802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Profinet	Profinet Class A conformance (available with optional order code)
Bandwidth (Non-blocking)	20 Gbps
Packer buffer	128 KB
MAC address table size	2K entries
Jumbo frame support	9216 bytes
Power Connector	2-pin industrial DC power socket
Input voltage range	7 – 57 VDC, overvoltage protection: 60Vmax, reverse polarity protection: 80Vmax, surge protection: min 64.4V/max 71.2V breakdown voltage, 93.6V maximum reverse voltage @4.3A maximum reverse surge current, 1- Vin, 2-PGND
Power consumption	Idle: 0.5 W / Max: 1.5 W
Status LEDs	1 x Power LED, 16 x ETH status LEDs
Power	1 x 2-pin industrial DC power socket
Other	1 x Grounding screw
Casing material	Anodized aluminum housing and panels
Dimensions (W x H x D)	113.1 x 41.2 x 74.6 mm
Weight	256 g
Mounting options	Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)
Operating temperature	-40 °C to 75 °C
Operating humidity	5% to 95% non-condensing
Ingress Protection Rating	IP30
Standards	UL/CSA Safety: UL 62368-1 (3rd Ed., Rev. December 13, 2019), C22.2 No. 62368-1:19 (3rd Ed., Rev. December 13, 2019)
