13 dBi 860 MHz to 960 MHz Stainless Steel Yagi Antenna. Constructed of Stainless Steel for outstanding service life. Individual elements are braised to the main beam for permanent attachment. These antennas have high gain and good front to back performance to minimize external interference. They can be mounted in vertical or horizontal polarisation. They come standard with an 18” pigtail cable terminated with an N Female connector. Great for Non line of sight and IoT applications like LoRaWAN and SigFox.
Features
- High Gain Directional Antenna
- Available in 9, 11 and 13dBi gain models
- Stainless Steel Construction, Low Wind Loading
- Vertical or Horizontal Polarization mounting options

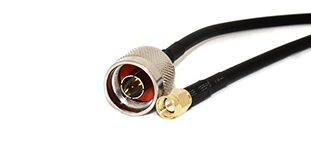

- 18” Pigtail with Type N Female Connector Standard
- DC Ground for lightning protection
- Applications: 900 MHz ISM Band Applications, Non Line of Sight Applications, IoT LoRaWAN and SigFox, Point to Multi-point Systems, Rural Broadband Initiative GSM Antenna (RBI project New Zealand)
| Details | |
|---|---|
| Manufacturer's Product Code | ANT-55 |
| Frequency Range | 860-960MHz |
| Gain | 13dBi |
| Impedance | 50 Ohm |
| Vertical Beamwidth | 30deg |
| Horizontal Beamwidth | 30deg |
| Connector Type | N-Type Female |
| Dimensions | 1.63cm |
| Pole Mount Diameter | 25-50mm |
| Details | |
|---|---|
| Pole Mount | Included |
| Warranty | Standard 12 Month RTB |
N-Type
600-999MHz
