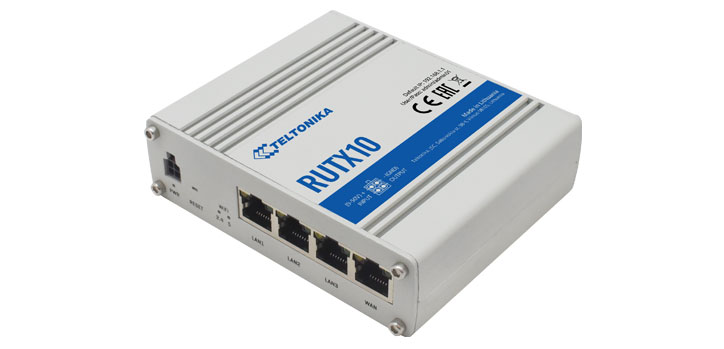

Teltonika RUTX10 Industrial Dual Band WiFi 5 802.11ac Gigabit Router with Bluetooth BLE
The RUT X10 is a Next-Generation Teltonika Enterprise router, equipped with the Dual Band WiFi 5 802.11ac and a Bluetooth LE module. Perfect for Small office or Public sector applications. High speed WiFi connectivity allows companies to transition into all-wireless office settings.
The RUTX10 Enterprise module has been created specifically for small to mid-size office applications. It comes with Dual Band WiFi 5 802.11ac, that is extremely important for high data transmission and a lag-free browsing experience. RUTX10 has all the latest security features with the ability to monitor and control your office data usage remotely.
The highly customizable RutOS is at the soul of RUTX10, but it’s actually a synergy between hardware and software that makes this device a perfect performer in enterprise solutions. The Quad Core ARM Cortex A7 717 MHz CPU is more than enough for VPN functionality.
The RUT X10 is a Next-Generation Teltonika Enterprise router, equipped with the Dual Band WiFi 5 802.11ac and a Bluetooth LE module. Perfect for Small office or Public sector applications. High speed WiFi connectivity allows companies to transition into all-wireless office settings.
The RUTX10 Enterprise module has been created specifically for small to mid-size office applications. It comes with Dual Band WiFi 5 802.11ac, that is extremely important for high data transmission and a lag-free browsing experience. RUTX10 has all the latest security features with the ability to monitor and control your office data usage remotely.
The highly customizable RutOS is at the soul of RUTX10, but it’s actually a synergy between hardware and software that makes this device a perfect performer in enterprise solutions. The Quad Core ARM Cortex A7 717 MHz CPU is more than enough for VPN functionality.
Features
- Wave-2 802.11ac Dual Band WiFi with speeds up to 867 Mbps
- Gigabit Ethernet with speeds up to 1000 Mbps
- Teltonika Remote Management System compatible
- Bluetooth LE for short range communication
- Quad core ARM Cortex A7 CPU, 717 MHz
- RutOS – easy to use, secure and feature rich Operating System
| Details | |
|---|---|
| Product code | RUTX10000400 |
| Ethernet | WAN - 1 x WAN port 10/100/1000 Mbps, 3 x LAN ports 10/100/1000 Mbps |
| Wireless mode | 802.11ac (WiFi 5),Dual Band, MU-MIMO |
| Wireless Hotspot | Captive portal (Hotspot), internal/external Radius server, built in customizable landing page |
| Bluetooth | Bluetooth low energy (LE) for short range communication |
| Connection monitoring | Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Modbus TCP slave | ID range 1-255 |
| Modbus TCP master | Supported functions 01, 02, 03, 04, 05, 06, 15, 16 Supported data formats 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit float (Big endian, Big endian with byte-swapped, Little endian, Little endian with byte-swapped) |
| CPU | Quad-core ARM Cortex A7, 717 MHz |
| RAM | 256 MB, DDR3 |
| FLASH memory | 256 MB SPI Flash |
| Development tools | SDK package with build environment provided (planed) |
| Applications | Samba share, custom scripts |
| Events | SMS, Email, RMS (Teltonika Remote Management System) |
| Power Connector | 4 pin industrial DC power socket |
| Input voltage range | 9 - 50 VDC, reverse polarity protection, voltage surge/transient protection |
| PoE | Passive PoE. Possibility to power up through LAN port, not compatible with IEEE802.3af and 802.3at standards |
| Power consumption | 11 W Max |
| I/Os | 1 Digital Input, 1 Digital Output on 4 pin power connector |
| Status LEDs | 8 x LAN status LEDs, 1 x Power LED, 2.4G and 5G WiFi LEDs |
| Antennas | 2 x RP-SMA (WiFi), 1 x RP-SMA for Bluetooth |
| USB | USB A port for external devices |
| Casing material | Full aluminium housing |
| Dimensions | 115 mm x 95 mm x 32 mm (H x W x D), Weight: 357 g |
| Mounting options | DIN rail (can be mounted on two sides), flat surface placement |
| Operating temperature | -40 C to 75 C, Humidity: 0 % to 90 % non-condensing |
| Ingress Protection Rating | IP30 |
| Details | |
|---|---|
| Router | RUTX10 |
| Power | NZ AC/DC power adapter 9 V 1 A, 4 pin plug included |
| Antennas | 2 x WiFi antennas (swivel, RP-SMA male), 1 x Bluetooth antenna (swivel, RP-SMA male) |
| Cable | Ethernet (1.5 m) |
Teltonika RMS
1Gbps
Wi-Fi 5 , Bluetooth
RP-SMA , SMA
2.4GHz , 5GHz
