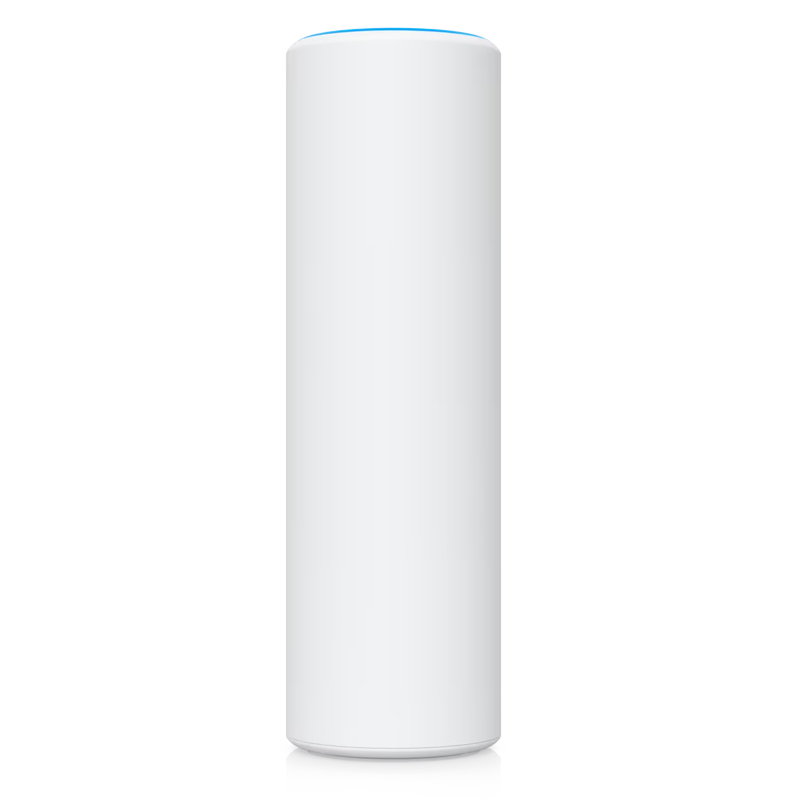

Introducing the Ubiquiti UniFi U7 Mesh, compact indoor/outdoor Wi-Fi 7 AP with integrated long-range WiFi antenna system.

Features

Dual-Antenna Mesh Performance, Directional 5 GHz backhaul plus an omni antenna for reliable mesh links and local client coverage at the same time
MLO Ready, Multi-Link Operation support for improved latency and resiliency
2.5 GbE PoE RJ45, Multi-gig uplink capacity maintains consistent performance in high-traffic WiFi7 deployments
IPX6 Rated protection supports outdoor deployments when installed with the included outdoor mount

Details
Manufacturer's Code	U7-Mesh
Dimensions	⌀48.5 × 159.5 mm
Weight	313 g
WiFi Standard	WiFi 7
Spatial Streams	4
Coverage Area	140 m²
Max. Client Count	200+
Uplink	2.5 GbE
Mounting	Wall, Pole, Table stand (Mounts included)
Weatherproofing	IPX6 (Installed with the outdoor mount)
Power Method	PoE
MIMO 5 GHz	2 × 2 (DL/UL MU-MIMO)
MIMO 2.4 GHz	2 × 2 (DL/UL MU-MIMO)
Max. Data Rate 5 GHz	4.3 Gbps (BW240)
Max. Data Rate 2.4 GHz	688 Mbps (BW40)
Antenna Gain 5 GHz	Omnidirectional: 6 dBi; Directional: 10 dBi
Antenna Gain 2.4 GHz	3 dBi
Max. TX Power 5 GHz	24 dBm
Max. TX Power 2.4 GHz	23 dBm
Max. BSSIDs	8 per Radio
Features	Wireless Meshing, Band Steering, 802.11v BSS Transition Management, 802.11r Fast Roaming, 802.11k Radio Resource Management (RRM), Advanced Radio Management, Passpoint (Hotspot 2.0), Custom Branding Landing Page, Voucher Authentication, Payment-Based Authentication, External Portal Server Support, Password Authentication, Guest Network Isolation, Private Pre-Shared Key (PPSK), WiFi Speed Limiting, Client Device Isolation, WiFi Schedules, RADIUS over TLS (RadSec), Dynamic RADIUS-assigned VLAN
Max. Power Consumption	13W
Includes PoE Adapter	Yes
Supported Voltage Range	42.5–57V DC
Networking Interface	(1) 2.5 GbE RJ45 port
Management	Ethernet
Enclosure Material	UV-stabilized polycarbonate
Mount Material	UV-stabilized polycarbonate
LEDs	System
LED Color	W/B
Channel Bandwidth	HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
Ambient Operating Temperature	-30 to 60° C
Ambient Operating Humidity	5 to 95% noncondensing
NDAA Compliant	Yes
Certifications	CE, FCC, IC
Application Requirements	UniFi Network Version 10.1.85 and later
Mobile App	UniFi iOS™: Version 10.32.1 and later; Android™: Version 10.35.1 and later
