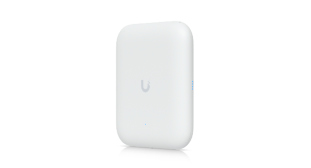

Ubiquiti UniFi U7 Pro Outdoor WiFi 7 AP with Integrated Directional Super Antenna

$596.00 +GST

Out of Stock

SKU: U7-Pro-Outdoor

Quantity	Price
1 - 4	$596.00
5 - 9	$581.10
10 - 19	$566.20
20+	$536.40

ETA: 20-06-2025

Ubiquiti UniFi U7 Pro Outdoor WiFi 7 AP with Integrated Directional Super Antenna

Warranty

Notify Me

Back to: Access Points

Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*

Description

Specifications

Resources

Package Contents

Ubiquiti UniFi U7 Outdoor WiFi 7 AP is an all-weather WiFi 7 AP with 4 spatial streams, an integrated directional super antenna, and versatile mounting options.

PoE NOT included

Features

WiFi 7
6 spatial streams
465 m² open space coverage with the integrated directional super antenna
Software-switchable from internal directional to included external omni antennas
300+ connected devices
Powered using PoE+
2.5 GbE uplink
Versatile wall and pole mounting
Weatherproof (outdoor exposed)

Details
Manufacturer's Code	U7-Pro-Outdoor
WiFi Standard	WiFi 7
Spatial Streams	6
Coverage Area	465 m²
Max Client Count	300+
Dimensions	Without mount: 170 x 208 x 66.5 mm, With mount: 170 x 208 x 121.8 mm
Weight	Device: 1.2 kg, With mount: 1.33 kg
Enclosure Material	UV-stabilized polycarbonate, aluminum alloy
Mount Material	UV-stabilized polycarbonate
Mounting Options	Wall, ceiling, pole (Mounts included)
Pole Mount Diameter	25–63.5 mm
Wind Loading	74.6 N@200 km/h
Weatherproofing	IPX6, IP67 with cable-gland door kit (included)
Networking Interface	(1) 1/2.5 GbE RJ45
Power Method	PoE+ (42.5–57V DC)
Maximum Power Consumption	21W
MIMO	2.4 GHz: 2x2, 5 GHz: 2x2, 6 GHz: 2x2 (DL/UL MU-MIMO)
Maximum Data Rate	6 GHz: 5.8 Gbps, 5 GHz: 4.3 Gbps, 2.4 GHz: 688 Mbps
Antenna Gain	6 GHz: 10 dBi, 5 GHz: 11 dBi / 8 dBi, 2.4 GHz: 8 dBi / 6 dBi
Antenna Beamwidth	Internal: 90° x 45°, External Omni: 360° x 15°
Maximum TX Power	6/5 GHz: 26 dBm, 2.4 GHz: 23 dBm
BSSIDs	8 per radio
Guest & Security Features	Captive Portal, PPSK, VLANs, RadSec, Band Steering, Fast Roaming
Management	UniFi Network (v9.0.114+), Mobile App (iOS 10.20.2+, Android 10.21.7+)
Certifications	CE, FCC, IC, NDAA
Operating Temp	-30 to 60°C
Operating Humidity	5 to 95% (noncondensing)
