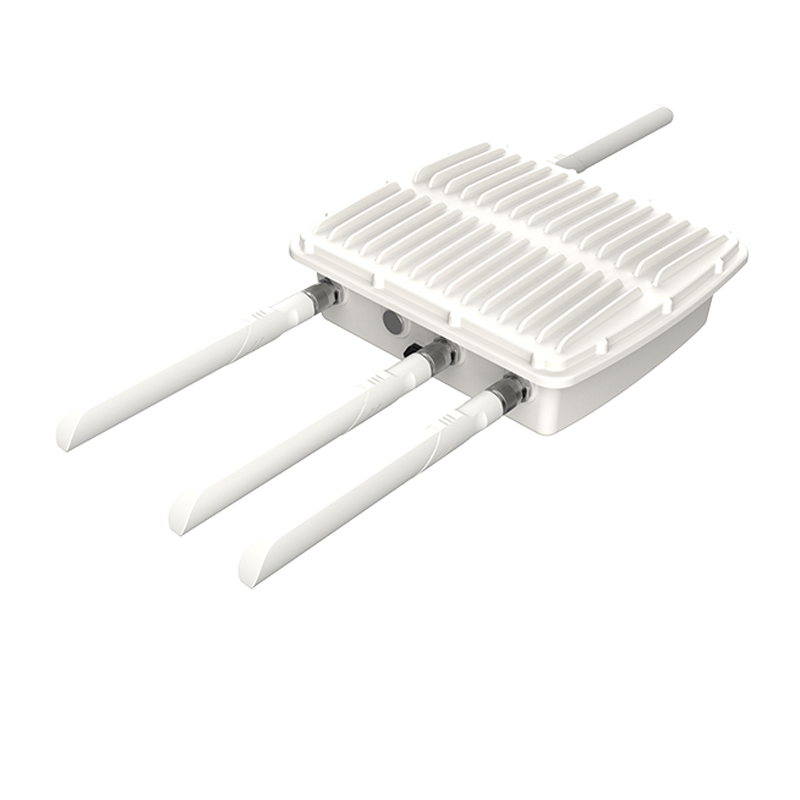

Ursalink Outdoor EU868 LoRaWAN Base Station with GPS, Wi-Fi and PoE support. The Ursalink UG87 is an industrial outdoor LoRaWAN gateway with embedded intelligent software features designed for multifarious M2M/IoT applications. Adopting a high-performance industrial platform with a 64-bit CPU and wireless module, the UG87 enables you to scale up M2M applications combining data within a limited time and budget. The UG87 is particularly ideal for smart cities, smart agriculture, building automation, digital factory, environment protection, water conservancy and so on.
The Ursalink UG87-Outdoor industrial LoRaWAN gateway has an IP67 enclosure and is designed for wide area smart city applications and can work perfectly with The Things Network.
Check out how to connect UG87 to The Things Network
Click here for more information about the Complete Outdoor LoRaWAN Base Station range from Ursalink.
Need help selecting the right IoT solution?
Go Wireless NZ now offers a full consultation service through its subsidiary company Scopious IoT Ltd to help you to start building your IoT network today. We now offer a full service, including everything from the LoRaWAN Network Server, automated bulk provisioning of gateways and devices, simple field force onboarding tools, vendor relationships for IoT hardware design services, Integrations and API’s for third party connectivity.
Consult with Scopious IoT today!
The Ursalink UG87-Outdoor industrial LoRaWAN gateway has an IP67 enclosure and is designed for wide area smart city applications and can work perfectly with The Things Network.
Check out how to connect UG87 to The Things Network
Click here for more information about the Complete Outdoor LoRaWAN Base Station range from Ursalink.
Need help selecting the right IoT solution?
Go Wireless NZ now offers a full consultation service through its subsidiary company Scopious IoT Ltd to help you to start building your IoT network today. We now offer a full service, including everything from the LoRaWAN Network Server, automated bulk provisioning of gateways and devices, simple field force onboarding tools, vendor relationships for IoT hardware design services, Integrations and API’s for third party connectivity.
Consult with Scopious IoT today!
Features
- Compliance to LoRaWAN Class A and Class C
- Built in DI/DO Serial Port and GPS
- IEEE 802.11b/g/n/ac Wi-Fi built in
- 16 Simultaneous channels
- Backhaul Connectivity
- IP67 Waterproof Casing
- Long Range over 10 km Radius
- Free Embedded Network Server
- Embedded Network Server and MQTT transmission
- Ursalink Cloud compliant
- Support GPS for high-precision time synchronization
- Easily onboard and monitor 100’s of LoRaWAN Gateways with the Scopious onboarding tool
| Details | |
|---|---|
| Manufacturer's Code | UG87-W-G-P-CH16-868 |
| CPU | 800 MHz, 64-bit ARM Cortex-A53 |
| Memory | 512 MB DDR3 RAM |
| Flash | 8 GB eMMC |
| Storage | 1 × M.2 slot supports SATA M.2 SSD |
| LoRaWAN Connector | 1 × 50 Ω N-Type (Center PIN: Female) for 8-channel model, 2 × 50 Ω N-Type (Center PIN: Female) for 16-channel model |
| Channel | 16 |
| Frequency | Band EU868 |
| Sensitivity | -140dBm Sensitivity @292bps |
| Output Power | 27dBm Max |
| Protocol | V1.0 Class A/Class C and V1.0.2 Class A/Class C |
| Ethernet Interface | 1 × RJ45 (PoE PD), 10/100/1000 Base-T (IEEE 802.3), Data Rate 10/100/1000 Mbps (Auto-Sensing), Interface Auto MDI/MDIX, Mode Full or Half Duplex (Auto-Sensing) |
| Wi-Fi | Connectors 1 × 50 Ω N-Type (Center PIN: Female) |
| Standards | IEEE 802.11 b/g/n/ac |
| Tx Power | 802.11b: 16 dBm +/-1.5 dBm (11 Mbps), 802.11g: 15 dBm +/-1.5 dBm (54 Mbps), [email protected] GHz: 14 dBm +/-1.5 dBm (MCS7), 802.11n@5 GHz: 11 dBm +/-2 dBm (MCS7), 802.11ac@5 GHz: 10 dBm +/-2 dBm (MCS9) |
| GPS Connectors | 1 × 50 Ω N-Type (Center PIN: Female) |
| Network Protocols | PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS,HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc. |
| VPN Tunnel | OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN |
| Access Authentication | CHAP/PAP/MS-CHAP/MS-CHAPV2 |
| Firewall | ACL/DMZ/Port Mapping/MAC Binding/URL Filter |
| Management | Web, CLI, SMS, On-demand dial up, DeviceHub |
| Reliability | WAN Failover, Dual SIM Backup |
| Power Supply | 1 × 802.3 af/at PoE input |
| Power Consumption Typical | 4.9 W, Max 6.5W (8 channels), Typical 6 W, Max 8.2W (16 channels) |
| Ingress Protection | IP67 |
| Dimensions | 256 x 226 x 90.5 mm |
| Mounting | Wall or Pole Mounting |
| Built-in | Watchdog, RTC, Timer |
| Certification | CE, FCC |
| Operating Temperature | -40 degC to +70 degC, Reduced Cellular Performance Above 60°C |
| Storage Temperature | -40 degC to +85 degC |
| Ethernet Isolation | 1.5 kV RMS |
| Relative Humidity | 0% to 95% (non-condensing) at 25 degC |
| Details | |
|---|---|
| Included | 1 × LoRa Antenna, 1 × GPS Antenna, 1 × WiFi Antenna, 1 × Wall Mounting Kit, 2 × Pole Mounting Kit, Screws, 1 × Ethernet Cable(Optional), 1 × PoE Injector |
N-Type
Milesight Cloud , Scopious IoT
600-999MHz , 1700-2100MHz , 2.4GHz , 5GHz
1Gbps
Wi-Fi 5 , GPS/GNSS , LoRAWAN
PoE (802.3af/at)
