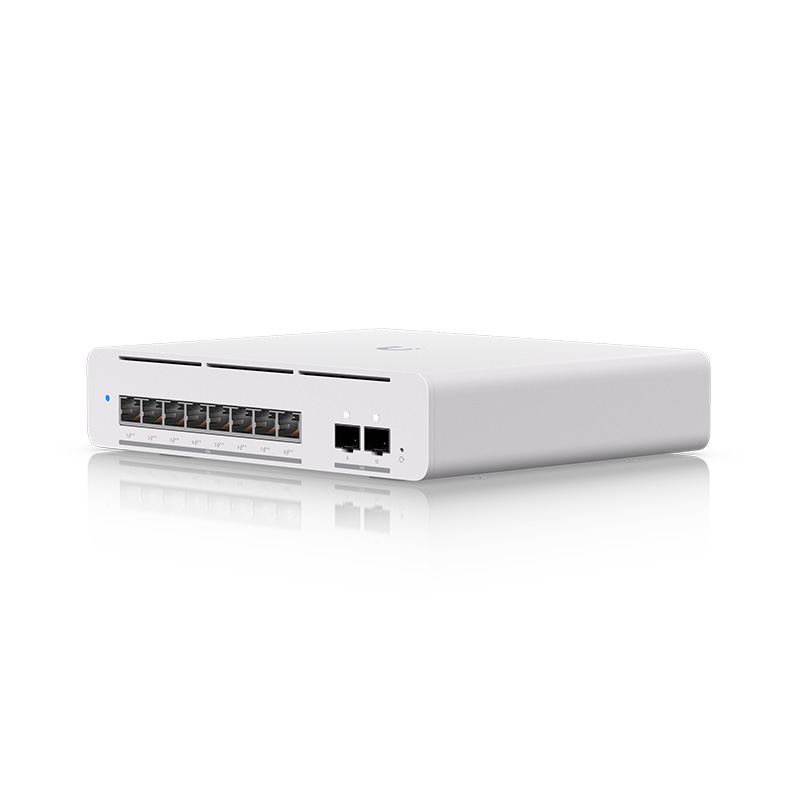

Ubiquiti UniFi Professional XG 8-port 10GbE Layer 3 Etherlighting PoE++ Switch

Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*

Supported Platforms

Description

Description

Specifications

Resources

Package Contents

Ubiquiti UniFi Professional XG 8-port 10GbE Layer 3 Etherlighting PoE++ Switch. Compact desktop/wall-mountable, professional-grade 8-port, Layer 3 Etherlighting™ PoE++ switch with (8) 10 GbE and (2) 10G SFP+ ports.

Features

(8) Multi-speed 10 Gigabit POE++ Ethernet Ports
(2) 10G SFP+ Ports
155W Total PoE Supply With Included AC Power Adapter

Details
Manufacturer's Product Code	USW-Pro-XG-8-PoE
Dimensions	210.4 x 173.8 x 43.7 mm (8.28 x 6.84 x 1.7")
Port Layout	10 GbE RJ45: 8 (All PoE++) (10G/5G/2.5G/1G/100M), 10G SFP+: 2 (10G/1G)
Max. PoE Output	Up to PoE++
Total PoE Availability	155W
Layer 3	Yes
Form Factor	Compact desktop, wall
Etherlighting	Yes
Switching Capacity	200 Gbps
Total Non-Blocking Throughput	100 Gbps
Forwarding Rate	149 Mpps
Supported VLANs	1,000
MAC Address Table Size	32,000
L3 Table Size	ARP Entries: 12,000, IPv4 Routes: 12,000
Packet Buffer Size	2 MB
Access Lists	IPv4: 128, MAC: 128
PoE Ports	PoE++: 8
Max. PoE Wattage per Port by PSE	PoE: 15.4W, PoE+: 30W, PoE++: 60W
Max. Power Consumption	61W (Excluding PoE output), 220W (Including PoE output)
Power Method	AC/DC Adapter (included)
Power Input Method	DC input
Power Supply	AC/DC, external, 210W
Supported Voltage Range	50—57V DC
Management	Ethernet, AR
Weight	1.6 kg (3.5 lb)
Enclosure Material	SGCC steel
Mount Material	Polycarbonate
ESD Protection	Air: ± 30kV, contact: ± 30kV
Ambient Operating Temperature	-5 to 45° C (23 to 113° F)
Ambient Operating Humidity	10 to 90% noncondensing
Etherlighting	Ethernet: Yes, SFP+: Yes
System LEDs	Yes
NDAA Compliant	Yes
Certifications	CE, FCC, IC
Application Requirements	UniFi Network Version 9.0.114 and later
