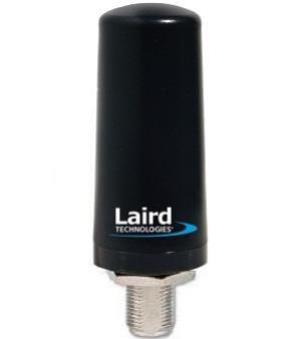

The Laird Phantom antenna operates simultaneously in the 698-960 MHz and 1700-2700 MHz bands, making it ideal for 3G/4G applications. The mechanically robust design is suitable for both indoor and outdoor applications with wide bandwidth and a low angle radiation pattern that is superior to traditional gain antennas in most applications. The antenna is ideal for both ceiling and surface mount applications. The industry standard N-Type connector makes it perfect for custom configurations. A threaded permanent stud mount model is also available for vandal resistant mounting on brackets, panels, ceilings or any other kind of housing.
Features
- Mechanically robust for both Indoor/Outdoor applications
- Applicable for both 3G and 4G application
- Domestic LTE 700 band and Global LTE 2600 band
- WiMAX 2300/2500/2600 bands
- Domestic Cellular and Global GSM
- Phantom out-performs a 3 dBi whip in many applications
| Details | |
|---|---|
| Manufacturer's Product Code | TRA6927M3PB-001 |
| Frequency Range | 698-960 MHz, 1710-2700 MHz |
| Gain | 698-960MHz: 3.5 dBi, 1710-1990MHz: 5.5 dBi, 2100-2700MHz: 4.6 dBi |
| Polarisation | Vertical |
| Connector Type | N-Type Female |
| Dimensions | 8.38 x 3.65cm |
| Details | |
|---|---|
| Warranty | Standard 12 Month RTB |
600-999MHz , 1700-2100MHz , 2.4GHz , 2.6GHz
N-Type
