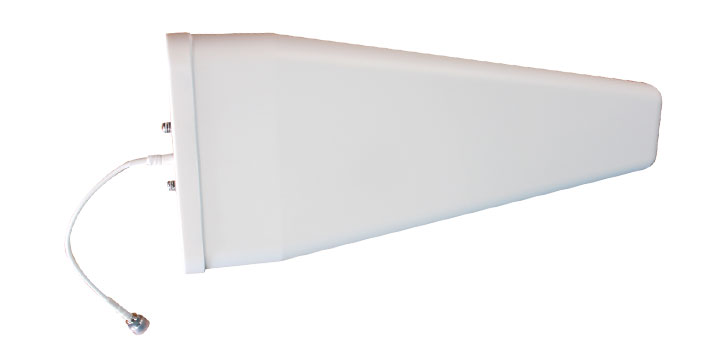

The Go Wireless NZ ANT-252 is a GSM/CDMA/PCS/3G/4G/5G/WLAN/LTE Broadband Directional Yagi Antenna with wideband frequency options including 698-960/1710-2700/3300-3800MHz.
This antenna is the ideal solution designed by Go Wireless NZ to cover all of the cellular frequencies, including the new 3.5GHz 5G bands to meet all your broadband needs.
This antenna is the ideal solution designed by Go Wireless NZ to cover all of the cellular frequencies, including the new 3.5GHz 5G bands to meet all your broadband needs.
Features
- Broadband Directional Antenna with Low VSWR
- Covers the new 5G 3.5GHz cellular bands
- Seal with Radome, Strong Protection against the elements
- Supplied with stainless steel mast down-tilt bracket
- Perfect for RBI (Rural Broadband Initiative) Installations
- Suitable for LoRaWAN and Sigfox 868MHz and 923MHz IoT applications
| Details | |
|---|---|
| Product Code | ANT-252 |
| Frequency Range | 698-960MHz, 1710-2700MHz, 3300-3800MHz |
| Gain | 9dBi @ 698-3800MHz |
| Polarisation | Vertical |
| Vertical Beamwidth | 60 deg 698-960MHz, 65 deg 1710-2700MHz, 60 deg 3300-3800MHz |
| Horizontal Beamwidth | 85 deg 698-960MHz, 80 deg 1710-2700MHz, 75 deg 3300-3800MHz |
| VSWR | ≤1.5 |
| Impedance | 50 Ohm |
| Connector Type | N-Type Female |
| Cable | 20cm RG141 White UV Stable Coax |
| Pole Mount Diameter | 25-50mm |
| Pole Mount Construction | 2.5mm 304 Stainless steel, L type cradle |
| Dimensions | 512mm x 64mm x 210mm |
| Details | |
|---|---|
| Pole Mount Bracket | Yes Included 2.5mm 304 Stainless steel, L type cradle |
N-Type
600-999MHz , 1700-2100MHz , 2.4GHz , 3GHz
