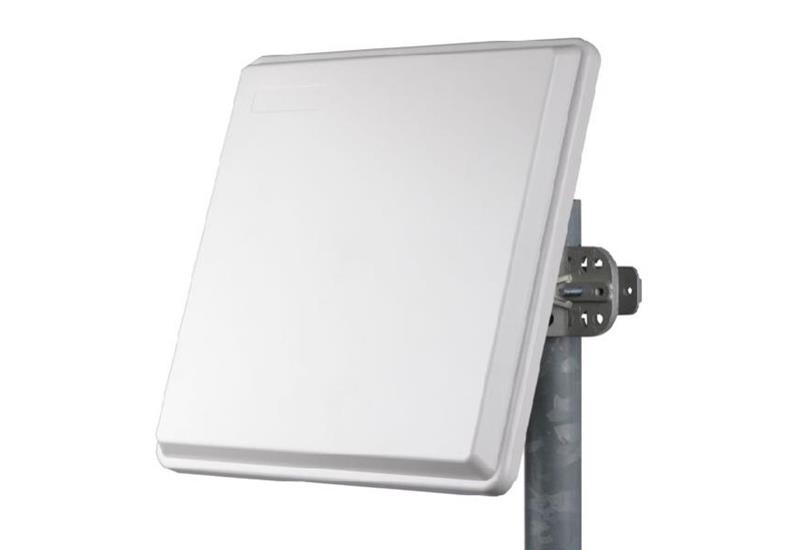

MARS MA-WA36-DP21 3.3-3.8GHz 22 dBi Dual Polarized Dual Slant Broadband Subscriber Antenna provides a cost effective solution for LTE & WiMAX applications. MA-WA36-DP21NB.
Features
- Dual slant if mounted diagonally
- Stable performance with 22 dBi of gain
- Compact size allowing easy blending with any environment
- Mount allowing quick and easy 45deg turn installation
- UV protected radome suitable for harsh environment installations
- MNT-22 Pole Included
| Details | |
|---|---|
| Manufacturer's Product Code | MA-WA36-DP21N |
| Frequency Range | 3.3-3.8 GHz |
| Gain | 22dBi |
| Polarisation | Vertical and Horizontal, Dual Slant 45deg |
| Vertical Beamwidth | 12deg |
| Horizontal Beamwidth | 12deg |
| Connector Type | 2x N-Type Female |
| Dimensions | 370 x 370 x 40 mm |
| Pole Mount Diameter | 30-63mm |
| Details | |
|---|---|
| Pole Mount | Yes, MNT-22 Included |
