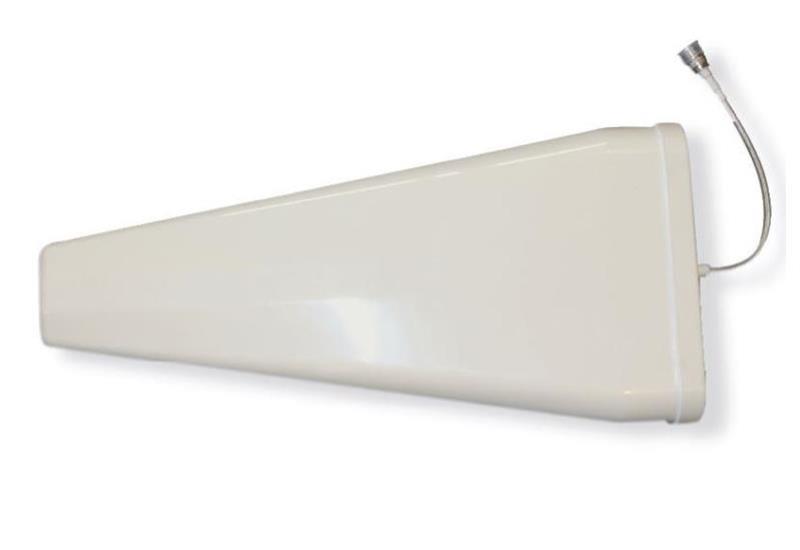

11dBi Wideband LTE Broadband Directional Antenna

$85.00 +GST
Login for your price
50+ In Stock
SKU: ANT-205
QuantityPrice
1 - 4$85.00
5 - 9$82.88
10 - 19$80.75
20+$76.50
GSM/CDMA/PCS/3G/WLAN/LTE Broadband Directional Antenna 698-960/1710-2500/2500-2700MHz
Warranty
Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*
Description
Specifications
Resources
Package Contents
The ANT-205 is a GSM/CDMA/PCS/3G/4G/WLAN/LTE Broadband Directional Antenna with wideband frequency options including 698-960/1710-2500/2500-2700MHz. This antenna is the ideal solution for all of your cellular reception needs.
Features
  • Broadband Directional Antenna with Low VSWR
  • Seal with Radome, Strong Protection against the elements
  • Supplied with stainless steel mast down-tilt bracket
  • Perfect for RBI (Rural Broadband Initiative) Installations
  • Suitable for LoRaWAN and Sigfox 868MHz and 923MHz IoT applications
Details
Manufacturer's Product CodeANT-205
Frequency Range698-960MHz, 1710-2500MHz, 2500-2700MHz
Gain10dBi @ 698-960MHz; 11dBi @ 1710-2700MHz
PolarisationVertical
Vertical Beamwidth50deg @ 698-960MHz; 40deg @ 1710-2700MHz
Horizontal Beamwidth75deg @ 698-960MHz; 60deg @ 1710-2700MHz
Connector TypeN-Type Female
Pole Mount Diameter25-50mm
Dimensions440mm, 65mm, 210mm
Details
Pole MountIncluded
600-999MHz , 1700-2100MHz , 2.4GHz
N-Type
4G

Reviews

Monday, 30 August 2021

We are out of all the telco's coverage maps for coverage but with this product we get rather good coverage and reliable 4G WIFI coverage.

AARON-HARDWICK

Thursday, 29 July 2021

Fantastic product. Installed on my bach in the Marlborough sounds where cellphones are lucky to connect, with this antenna I had a solid 3/5 bars. Thanks

Logan

Please log in to write a review. Log in
