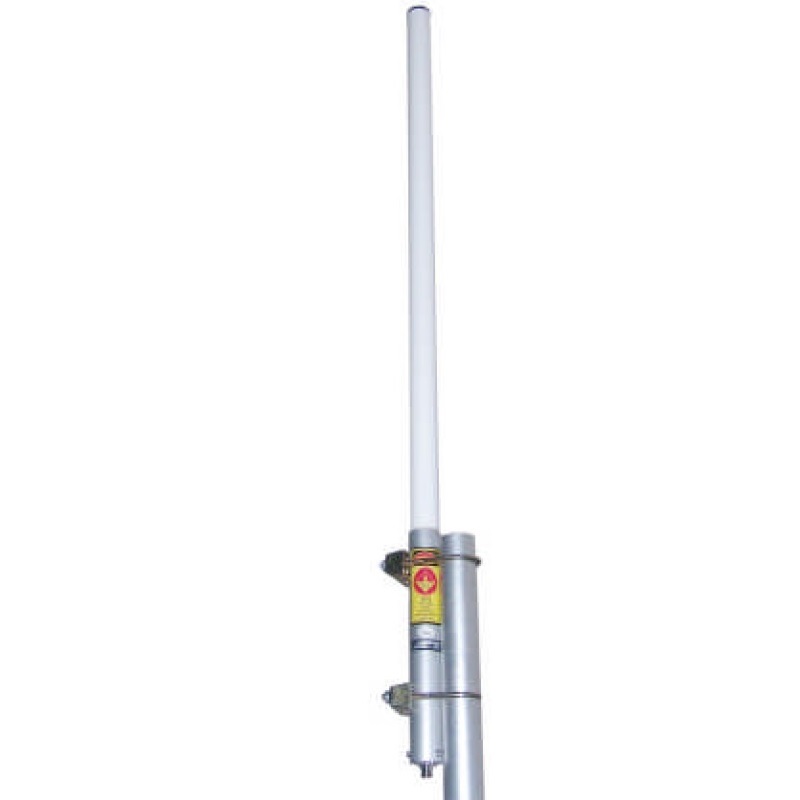

885 to 960MHz 9dBi Fiberglass Omni Antenna with N-Female and DC Short Protection for ISM, GSM, LoRaWAN IoT and Wireless LAN Systems. It is ideally suited for multipoint, Non Line of Sight (NLOS) IoT and mobile applications where high gain and wide coverage is desired. This antenna features an integral N-Female connector and a mast mounting kit consisting of a pair of heavy-duty steel bracket and U-bolts, this kit allows installation on masts up to 50 mm in diameter. Suitable for LoRaWAN and Sigfox IoT Solutions.
Oversized item, due to the size of this product it is excluded from our free freight option. Freight will be added to the invoice once confirmed and amount will depend on your location.
Oversized item, due to the size of this product it is excluded from our free freight option. Freight will be added to the invoice once confirmed and amount will depend on your location.
Features
- Fiberglass radome & superior performance
- Rugged all weather industrial grade design
- Lightweight fiberglass radome
- Integral N-Female connector
- Heavy-duty steel mounting bracket
- LPWAN, LoRaWAN, IoT, M2M, GSM and SCADA applications
- DC Short Protection
Details | |
---|---|
Manufacturer's Product Code | ANT-289 |
Freq Range | 885 to 960MHz |
Gain | 9dBi |
Horz Beamwidth | 360 deg |
Vert Beamwidth | 13 deg |
VSWR | ≤1.5 |
Impedance | 50 Ohm |
Polarization | Vertical |
Max.Power | 100 Watts |
Connector | N Female |
Protection | DC Short |
Length | 165cm |
Weight | 1.2 Kg |
Ratedwind Velocity m/s | 60 |
Radome | Fiberglass |
Pole Mount Diameter | 50mm |
Details | |
---|---|
Pole Mount | 2 x U-Bolt and clamps Included |
LoRAWAN , Proprietary
N-Type
600-999MHz
