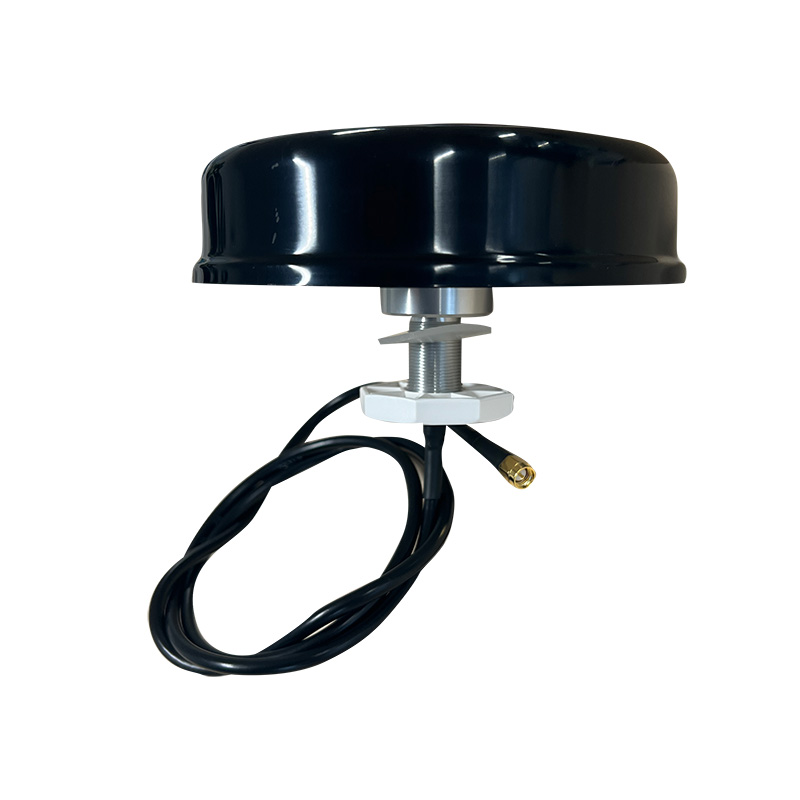

900 - 928 MHz Low Profile Outdoor Omni Antenna with 100cm Cable and SMA Male connector - Black, UV Stable. Perfect IoT antenna!
Features
- ISM 900MHz band suitable for AU915 and AS923 LoRaWAN IoT solutions
| Details | |
|---|---|
| Manufacturer's Product Code | ANT-291 |
| Frequency Range | 900 - 928 MHz |
| Bandwidth | 28Mhz |
| Polarization | Vertical |
| Gain(dBi) | 5 |
| Horizontal Beam Width | 360 deg Omni |
| Vertical Beam Width | 35 deg |
| Impedance | 50 Ohm |
| VSWR | ≤1.5 |
| Maximum Input Power | 100W |
| Connector Type | SMA Male |
| Cable Length | 1000mm |
| Antenna Size | 145 x 40 mm |
| Antenna Weight | 0.28 kg |
| Radome material | ABS |
| Radome colour | Black |
| Operating Temperature (℃) | -40 to＋85 |
| Relative Humidity(%) | 5 - 95 |
| Rated Wind Velocity(m/s) | 60 |
| Salt Spray Resistance | 96Hour Neutral (GB/T 2423.17-2008） |
| waterproofing grade | IP65 |
| Mounting | 20mm through hole Nut tightening |
| Details |
|---|
LoRAWAN , Proprietary
SMA
600-999MHz
