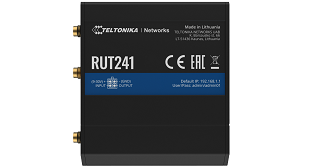

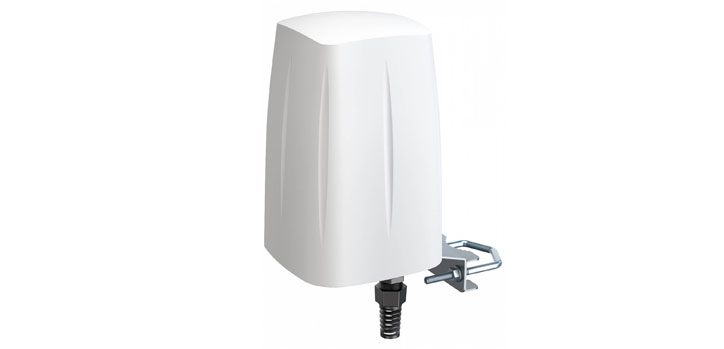

The QuWireless QuSpot A240S for the Teltonika RUT240/RUT241 features an Integrated multi-band LTE omni antenna + WiFi omni antenna + place to install a Teltonika RUT240/RUT241 (All-in-one)
The QuSpot omni LTE antenna for the Teltonika RUT240/RUT241 router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. It also has an embedded omni Wi-Fi antenna. If you use the RUT240 with a QuSpot antenna, you get an integrated complete solution with an embedded router with multi band antennas in one enclosure.
The QuSpot omni LTE antenna for the Teltonika RUT240/RUT241 router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. It also has an embedded omni Wi-Fi antenna. If you use the RUT240 with a QuSpot antenna, you get an integrated complete solution with an embedded router with multi band antennas in one enclosure.
Features
- IP67 Outdoor antenna
- Passive PoE Support
- Made to fit mount
- Easy to Install
- Easy Integration with the Teltonika RUT240/RUT241
Details | |
---|---|
Product Code | A240S |
Supported LTE bands | 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 2305-2360 |
Frequency Gain | 0.694-0.96 GHz: 2dBi, 1.7 - 2.2 GHz: 2dBi, 2.2 - 2.7 GHz: 4dBi |
Beamwidth | 360°/35° +/- 5° |
Polarization | Vertical |
Impedance | 50 O |
WiFi Frequencies | 2.40-2.50 GHz (6dBi), 4.70 - 6.00 GHz (7dBi) |
Materials | ABS, aluminum, PTFE |
Ingress Protection | IP67 |
Dimensions | 160 x 160 x 240 mm |
Weight | 1.5 kg |
Operating Temperature | From -40°C to 75°C |
Details | |
---|---|
Contents | IP67 Rated Enclosure Antenna, Ethernet Connector Gland, Pole mount Included |
RJ45 , RP-SMA , SMA
600-999MHz , 1700-2100MHz , 2.4GHz , 2.6GHz
3G/4G/5G/LTE , 802.11b , 802.11g , 802.11n
