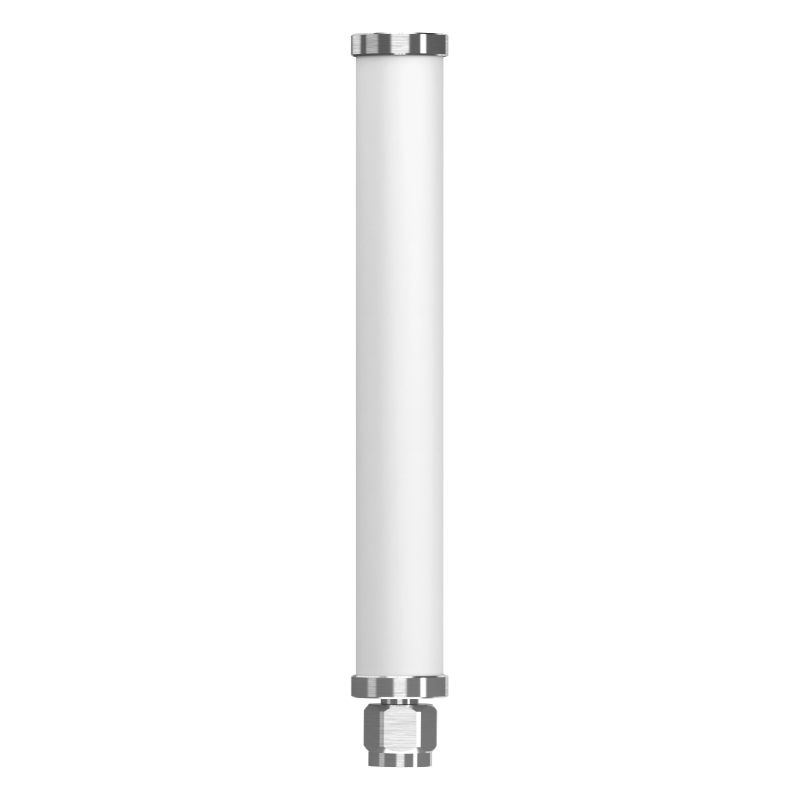

QuOmni Wi-Fi 6E offers a 360 degrees, 6dBi (2.4GHz) & 7.5dBi (5GHz and 7GHz) gain signal. It is a perfect indoor and outdoor device for industrial installations with N-Male connector.
QuOmni Wi-Fi 6E is a concurrent dual band, Vertical polarity, omni antenna. It simultaneously operates at 2.4GHz with 6dBi gain and 5GHz+7GHz with 7.5dBi gain. This antenna is predicted to be installed as the hotspot in parks, stadiums, warehouses, production halls, malls, lecture halls or another public places. Its aesthetic design is acceptable in most of the visible places. Wide frequency range (2.4-2.5GHz & 5.0-7.2GHz) helps to find suitable frequency for the most effective operation. The antenna comes with built-in Nm connector.
QuOmni Wi-Fi 6E is a concurrent dual band, Vertical polarity, omni antenna. It simultaneously operates at 2.4GHz with 6dBi gain and 5GHz+7GHz with 7.5dBi gain. This antenna is predicted to be installed as the hotspot in parks, stadiums, warehouses, production halls, malls, lecture halls or another public places. Its aesthetic design is acceptable in most of the visible places. Wide frequency range (2.4-2.5GHz & 5.0-7.2GHz) helps to find suitable frequency for the most effective operation. The antenna comes with built-in Nm connector.
Features
- IP67 Outdoor antenna
- Integrated N-Male connector
- WiFi 6E and WiF 7
- Concurrent dual band
| Details | |
|---|---|
| Product Code | OW6E.1NM |
| Frequency | 2.4 - 2.5 GHz, 5.0 - 7.2 GHz |
| Gain | 2.4 - 2.5 GHz: 6dB,i 5 GHz: 7.5dBi, 7 GHz: 7.5dBi |
| VSWR | < 1.50, max < 2.00 |
| Beamwidth | 360°/25° |
| Polarization | Vertical |
| Impedance | 50 Ω |
| Max Input Power | 50W |
| Material | ABS |
| Outer dimensions | 3.0 x 22.0 cm |
| Weight | 0.2kg |
| Operating temperature | -40°C to +80°C |
| Connector | Integrated N-Male Connector |
| Details | |
|---|---|
| Contents | IP67 Rated Omni Antenna |
Wi-Fi 6E
N-Type
2.4GHz , 5GHz , 6-38GHz
