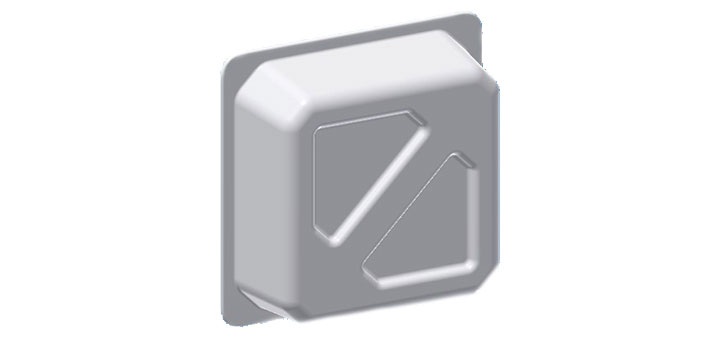

MARS 350MHz to 6GHz Multiband Dual Slant LTE/4G/5G Directional Antenna

$149.00 +GST

5 In Stock

SKU: ANT-258

Quantity	Price
1 - 4	$149.00
5 - 9	$145.28
10 - 19	$141.55
20+	$134.10

Data Sheet

Mars 350MHz to 6GHz Multi band Dual Slant Directional Antenna for 5G/4G/LTE

Warranty

Back to: Panel Antennas

Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*

Description
Reviews

Description

Specifications

Resources

Package Contents

The Mars MA-WA3560-DS7B is a 350MHz to 6GHz Multiband Dual Slant Directional Antenna with 2 x N-type Female connectors with MNT-22 Mount included. Suitable for for 5G/4G/LTE.

This Multi Band Antenna covers all the bands for LTE, 3G, 4G and 5G cellular, as well as CBRS, ISM, Wi Fi, WLAN, Bluetooth, GSM 900 and GSM 1900.

The antenna is aesthetic and has an unobtrusive profile that blends easily with any environment.

Easy installation makes this antenna highly recommended as an outstanding logistic solution for outdoor installations as well as in-building installations.

Details
Manufacturer's Product Code	MA-WA3560-DS7B
Frequency range	350-400MHz, 698–960MHz, 1.7–2.7GHz, 3.3-3.8 GHz 5.15-6.0GHz
Gain typ	1.5 dBi to 7.5 dBi frequency dependant
VSWR	See Data Sheet
Polarization	Dual Slant ± 45° or Dual Pol in Diamond Shape
Front to Back Ratio	min -15 dB
PIM typ	-150 dBc
Input power max	50 Watt
Impedance	50 Ohm
Dimensions	(HxWxD) 300 x 300 x 99 mm (12.2” x 12.2” x 4.96” )
Connector	2 x N Female
Weight	900 grams
Mounting	MNT-22
Radome	UV Protected Plastic
Back Plane	Aluminium protected through chemical passivization
Operating Temperature Range	-55oC to +65oC
Vibration	According to IEC 60721-3-4
Wind Load	200 Km/h (Survival)
Flammability	UL94
Water Proofing	IP-67
Humidity	ETS 300 019-1-4,EN 302 085 (Annex A.1.1)
Salt Fog	According to IEC 68-2-11
