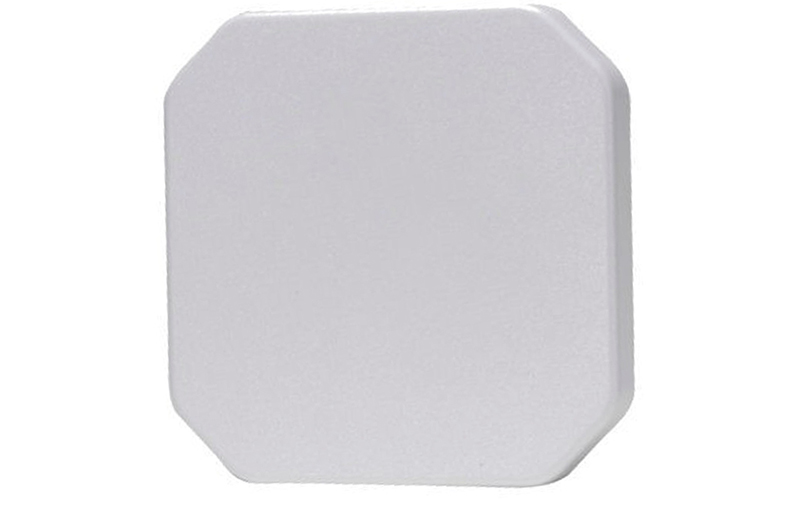

The Laird S9025PLNF operates within 902-928 MHz as a high-performance antenna and the only UHF RFID antenna available to the market that offers no-compromise in performance in a small package. At only 5.2” square the antenna offers a gain specification of 5.5 dBic and axial ratio better than 2 dB. In effect the antenna is providing the performance one would expect of a much larger antenna. The antenna is not only mechanically robust but is less likely to be exposed to excessive damage by virtue of its reduced size.
Features
- Left Hand Circularly polarized
- Low VSWR and axial ratio
- Rugged, ultra heavy duty construction
- IP 67 Rated
- Weather and UV resistant radome
- High performance in a small package
| Details | |
|---|---|
| Manufacturer's Product Code | S9025PLNF |
| Frequency Range | 902-928MHz |
| Gain | 5.5dBi |
| Connector Type | N-Type Female |
| Maximum VSWR | 1.5:1 |
| 3 dB Beamwidth - Azimuth | 100deg |
| Front to Back Ratio | 8 dB |
| Polarization | Circular LH |
| Maximum Input Power | 10 Watts |
| Input Impedance | 50 Ohms |
| Axial Ratio | 2.0 dB Typical |
| Weight (Kg) | .8 lbs (.37) |
| Radome | White or Charcoal High Strength PC |
| Mount Style | Threaded Stud 2x #10-32 |
| Temperature Operational | -30degC to +70degC |
| Storage Temperature | 40degC to 85degC |
| Impact Resistance | 1 lbs. Ball Drop, 24” |
| Salt | MIL-STD-810 |
| Vibration | MIL-STD-810 |
| Shock | IEC 68-2-27 |
| Humidity | IEC 68-2-30 |
| Lightning Protection | DC Grounded |
| Enclosure Rating | IP 67 |
| Dimensions | 132mm x 132mm x 18mm |
| Details |
|---|
Proprietary
N-Type
600-999MHz
