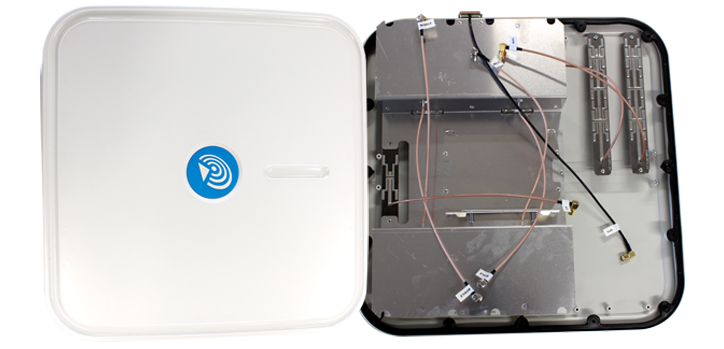

QuMax 4G/LTE, WiFi & GPS Outdoor Enclosure Panel Antenna for RUTX12 - An Integrated MIMO 4x4 multi-band LTE directional antenna + Wi-Fi omni antennas + GPS antenna + Bluetooth antenna + a place to install Teltonika RUTX12 (All-in-one)
The QuMax AX12M for the Teltonika RUTX12 router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots etc. It also has embedded Wi-Fi dual band 2.4 & 5 GHz omni antennas, GPS antenna and Bluetooth antenna. It is designed to have Teltonika RUTX12 router installed inside an IP67 enclosure. If you use RUTX12 with QuMax antenna, you get an integrated complete solution with an embedded router with multi band antennas in one enclosure.
The QuMax AX12M for the Teltonika RUTX12 router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots etc. It also has embedded Wi-Fi dual band 2.4 & 5 GHz omni antennas, GPS antenna and Bluetooth antenna. It is designed to have Teltonika RUTX12 router installed inside an IP67 enclosure. If you use RUTX12 with QuMax antenna, you get an integrated complete solution with an embedded router with multi band antennas in one enclosure.
Features
- IP67 Outdoor antenna
- Passive PoE Support
- Made to fit mount
- Easy to Install
- Easy Integration with the Teltonika RUTX12
Details | |
---|---|
Product Code | AX12M |
Supported LTE bands | 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 2305-2360 |
Frequency Gain | 0.694-0.96 GHz: 4dBi, 1.7 - 2.2 GHz: 5dBi, 2.2 - 2.7 GHz: 6dBi |
Beamwidth | 90°/90° +/- 30° |
Polarization | Vertical |
Impedance | 50 Ω |
WiFi Frequencies | 2.40-2.50 GHz (6dBi), 4.70 - 6.00 GHz (7dBi) |
Materials | ABS, aluminum, PTFE, Fiberglass |
Ingress Protection | IP67 |
Dimensions | 272 x 276 x 96 mm |
Weight | 1.8 kg |
Operating Temperature | From -40°C to 75°C |
Details | |
---|---|
Contents | IP67 Rated Enclosure, Ethernet Connector Gland, Pole mount Included |
RP-SMA , SMA
600-999MHz , 1700-2100MHz , 2.4GHz , 5GHz
1Gbps
4G , Bluetooth , GPS/GNSS
