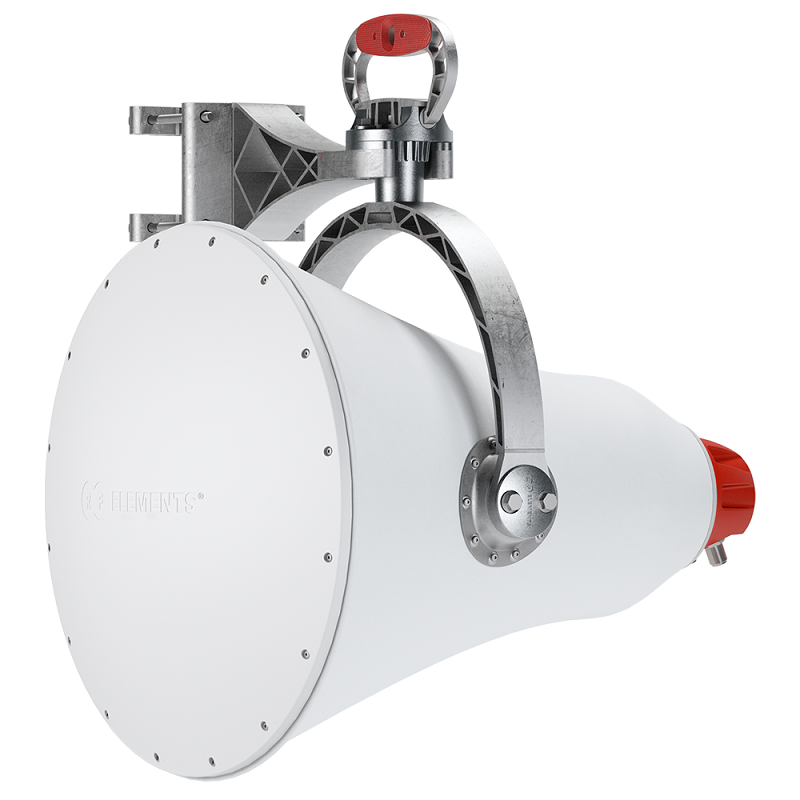

RF Elements UltraHorn 5180 - 6775 MHz 24dBi N-Female Connectorised Horn Antenna. RF Elements UltraHorn Carrier Class (CC) is a connectorised horn antenna with high gain and high directivity. The UltraHorn offers superb noise rejection due to symmetrical beam with no side lobes. These unique features make UltraHorn CC ideal for long distance links in high noise environments. UltraHorn delivers excellent performance as a narrow sector antenna for high noise environments. High performance antenna characteristics allow for precise network planning of dense co-location in very challenging RF conditions.
Due to the size of these items they are excluded from our free freight option. Freight will be added to all invoices once confirmed and amount will depend on your location.
Due to the size of these items they are excluded from our free freight option. Freight will be added to all invoices once confirmed and amount will depend on your location.
Features
- Ultimate Noise Rejecting Horn Antenna
- Unique Beam Without Side Lobes
- Ultimate Noise Rejection
- N-Type Connectors
- Zero Loss
- Easy Installation - Innovative Mounting System
| Details | |
|---|---|
| Product Code | UH-CC-5-24 |
| Frequency Range | 5180 - 6775 MHz |
| Gain | 24 dBi |
| Azimuth/Elevation Beam Width | -3 dB H 11° / V 11° |
| Azimuth/Elevation Beam Width | -6 dB H 16° / V 15° |
| Polarization | Double linear H+V |
| Front-to-Back Ratio | 40 dB |
| VSWR Max 5180-5850 MHz | 1.6 |
| VSWR Max 5850-6775 MHz | 1.8 |
| Antenna Connection | 2x N Female Bulkhead Connector |
| Antenna Type | Horn |
| Enviromental | IP55 |
| Pole Mounting Diameter | 30-80 mm |
| Temperature | -30°C to +55°C (-22°F to +131°F) |
| Wind Survival | 160 km/hour |
| Wind Loading | 136/113 N - Front/Side at 160 km/h (100 mi/h) |
| Details | |
|---|---|
| Pole Mount | Yes - Bracket Included |
