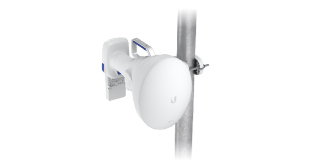

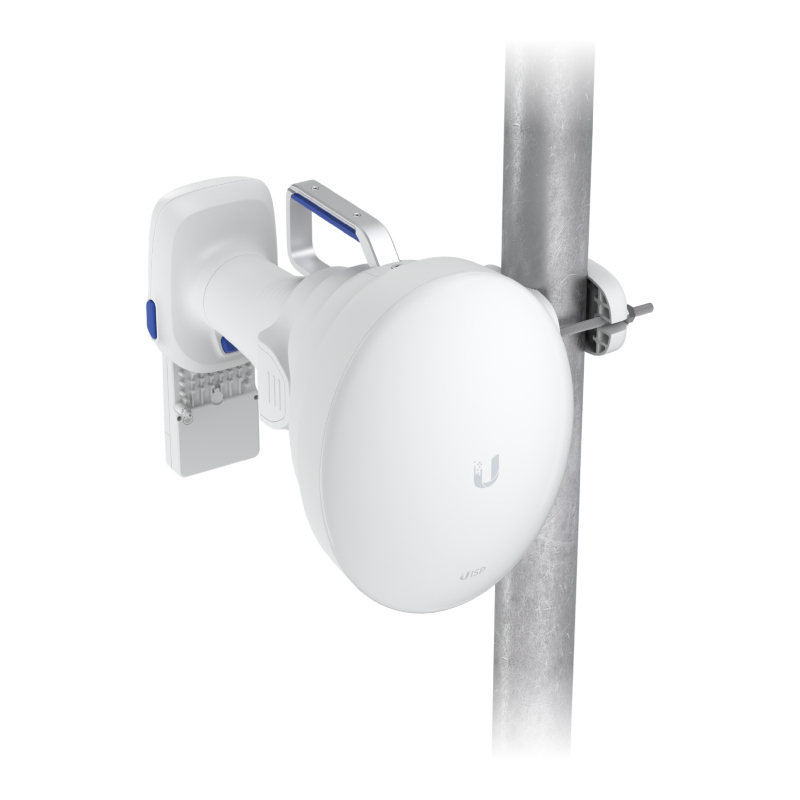

Ubiquiti UISP-Horn is a high-isolation, point-to-multipoint (PtMP) horn antenna that covers a wide operating frequency range (5.15 - 6.875 GHz).

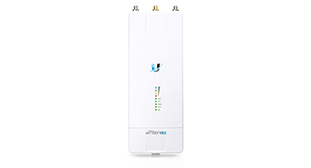

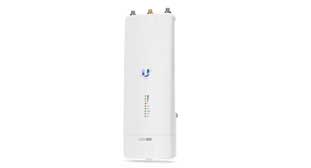

Designed to operated with the airFiber 5XHD PTP LTU Backhaul Radio, LTU-Rocket 5GHz PTMP Connectorised Access Point or Rocket AC PRISM Gen2 Access Point.
Designed to operated with the airFiber 5XHD PTP LTU Backhaul Radio, LTU-Rocket 5GHz PTMP Connectorised Access Point or Rocket AC PRISM Gen2 Access Point.
Features
- High-isolation 30° horn antenna that covers a wide operating frequency range (5.15 - 6.875 GHz)
- 15+ km PtMP link range
- Die-cast, UV-stabilized polycarbonate enclosure for enhanced durability and weatherproofing
- Pole-mountable antenna with a metal carrying handle
- Compatible with AF 5XHD, RP 5AC, LTU Rocket
| Details | |
|---|---|
| Manufacturer's Product Code | UISP-Horn |
| Frequency Range | 5.15 to 6.875 GHz |
| Gain | 19.5dBi |
| Connectors | WaveGuide connector with Snap on RP-SMA Adaptor |
| Beamwidth | Azimuth: 30° (6 dB), Elevation: 25° (6 dB) |
| Dimensions | 282 x 224 x 380 mm |
| Weight | Device: 3.06 kg, Mount: 925 g |
| Enclosure Materials | UV stabilized polycarbonate, aluminum alloy |
| Wind Survivability | Up to 200 km/h |
| Wind Loading | 90 N at 200 km/h |
| Mounting | Alignment mounting kit (included) |
| Mechanical adjustment | ±20° elevation, ±25° azimuth |
| Pole compatibility | Ø25 to 70 mm |
| Weatherproofing | IPX6 |
| Electrical Downtilt | 0° |
| Maximum VSWR | 2:1 |
| Polarization | Dual-linear |
| Cross-pol Isolation | 20 dB |
| Front-to-Back Ratio | Typical: 45 to 50 dB, Min: 40 dB |
| Details | |
|---|---|
| Pole Mount | Yes |
| Warranty | Standard 12 Month RTB |
RP-SMA , Waveguide
5GHz , 6-38GHz
