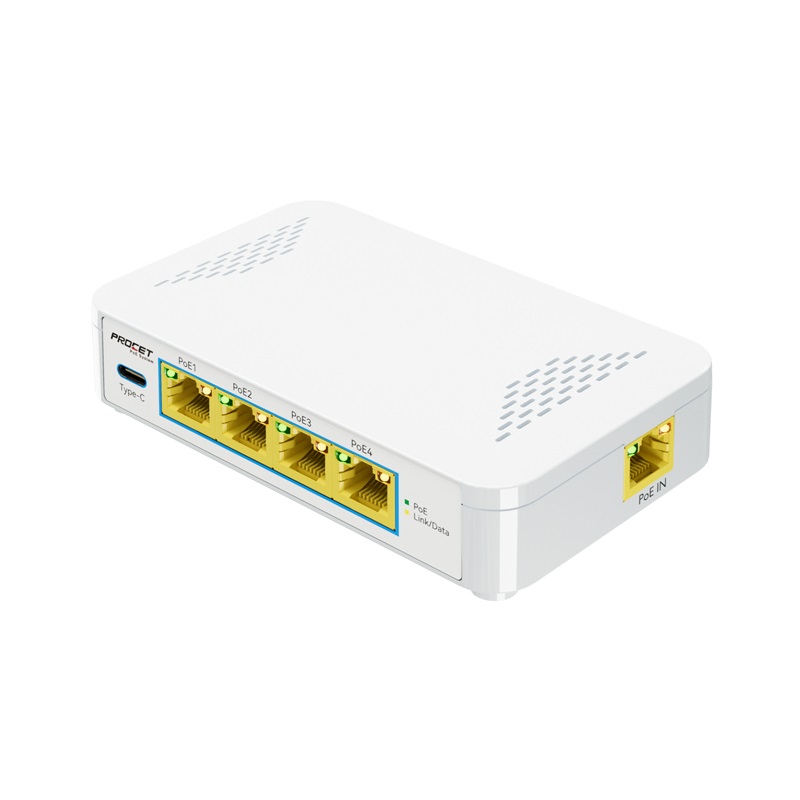

Procet Gigabit PoE Extender with USB-C Out and 4 Port 65 Watt PoE Switch.

EN-PEX04GBC is a 4-port Gigabit PoE extender, can deliver power and transmit data to 4 802.3af/at PDs simultaneously, total power budget is 65W. It is powered by an ultra 802.3bt/PoE++ switch or PSE, does not need an external power adapter. The maximum power input is 90W. The total effective distance from data source to PD is 200 meters over CAT5e/CAT6 cables. Daisy-chain 2 units reaching 300m from end to end or by star topology can power up 7 PDs.

Equipped a USB-C port, which can deliver power to mobile phone，tablet or USB-C devices. Designed with OVP, OCP, SCP function.

Details
Manufacturer's Product Code	EN-PEX04GBC
PoE Standard	IEEE802.3i 10Base-T Ethernet, IEEE802.3u 100Base-Tx Fast Ethernet, IEEE802.3ab 1000Base-T Gigabit Ethernet, CE, IEEE802.3 af / at / bt
Class Level	Class8
PoE Out Power Pin	3/6(+), 1/2(-) 802.3af/at
Interfaces	PoE IN x 1, PoE Out x 4, USB-C x 1
PoE Input	90W / IEEE802.3bt/PoE++, Passive 44-57Vdc (Not Included)
PoE Output	802.3af/at, 30W(max) each Port, total 65W
USB Type-C Output	5V 2.0A /Maxium 10W
Data Speed	10/100/1000Mbps
Operating Environment	Work Temp.：0℃ to 40℃
Operating Humidity	20% to 80%, non-condensation
Storage Humidity	10%-90%，non-condensation
Operating Altitude	Up to 2000 meters
Case	Plastic, Colour: White
IP Rated	IP20
Dimensions	116.4mm X 71.3mm X 30.5mm
Weight	151.3g
EMC	EN 55032:2015/A11:2020, EN 55035:2017/A11:2020
Network Protocol	IEEE802.3i, IEEE802.3u, IEEE802.3ab
Regulatory Compliance	CE
PoE Load Indicator Green	Solid Light: PD is powered(Default/Normal), Light Off: No connection to PD
Data Indicator Yellow	Flashing Light: Data available (Normal), Light Off: No Data transmission
Light Off	PoE Switch is powered off/defective
