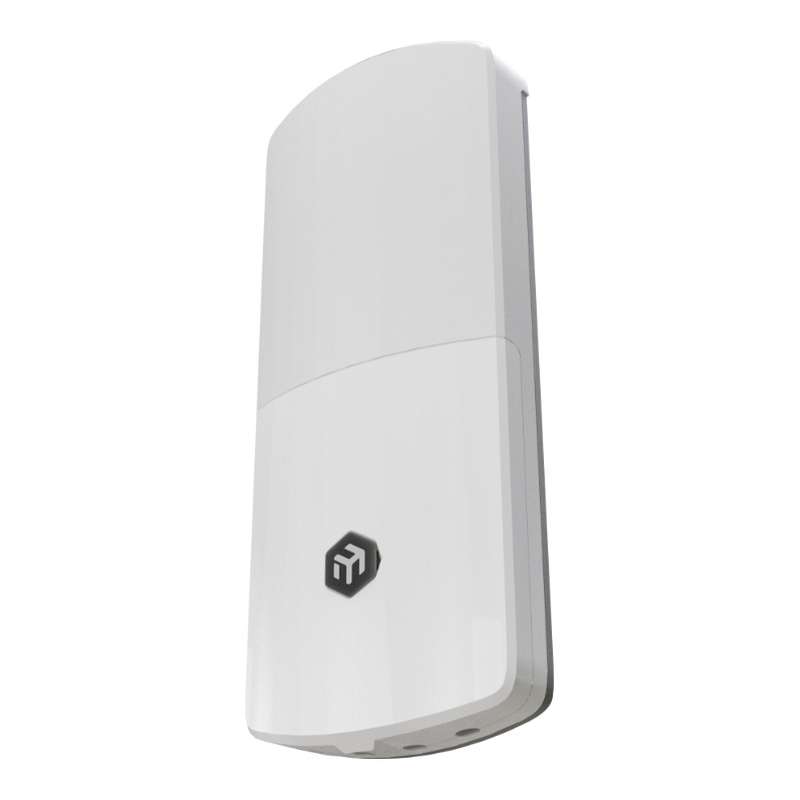

The MikroTik FTC21-ups is a weatherproof Fiber-to-Copper converter with 2.5G SFP and 2x Gigabit Ethernet ports, including PoE-out on Ether2. Its integrated battery keeps links stable during short power interruptions, preventing unnecessary renegotiations and device reboots.
Features
- Supports 802.3af/at and Passive PoE-out, great for CCTV cameras!
- IP67 weatherproof enclosure
- 2x Gigabit Ethernet, 1x 2.5G SFP Port
| Details | |
|---|---|
| Product code | FTC21-ups |
| Switch chip model | 88E6341 |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 24-57 V |
| Max power consumption | 28 W |
| Max power consumption without attachments | 3 W |
| PoE in | 802.3af/at |
| Cooling type | Passive |
| PoE in input Voltage | 48-57 V |
| PoE-out ports | Ether2 |
| PoE out | Passive PoE up to 57V |
| Low voltage PoE-Out current limit | 0.625 A |
| High voltage PoE-Out current limit | 0.315 A |
| Max total out (A) | 0.625 A |
| Total output current | 0.625 |
| Total output power | 15 |
| 10/100/1000 Ethernet ports | 2 |
| Number of 1G Ethernet ports with PoE-out | 1 |
| SFP ports | 1 (2.5G supported) |
| PCB temperature monitor | Yes |
| Certification | CE, EAC, ROHS |
| Outdoor Rating | IP67 |
| Details | |
|---|---|
| Included | K-95 mounting kit, 48V 1A power adapter, Gigabit PoE injector, Hose clamp |
RJ45 , SFP
PoE (non standard) , PoE (802.3af/at)
