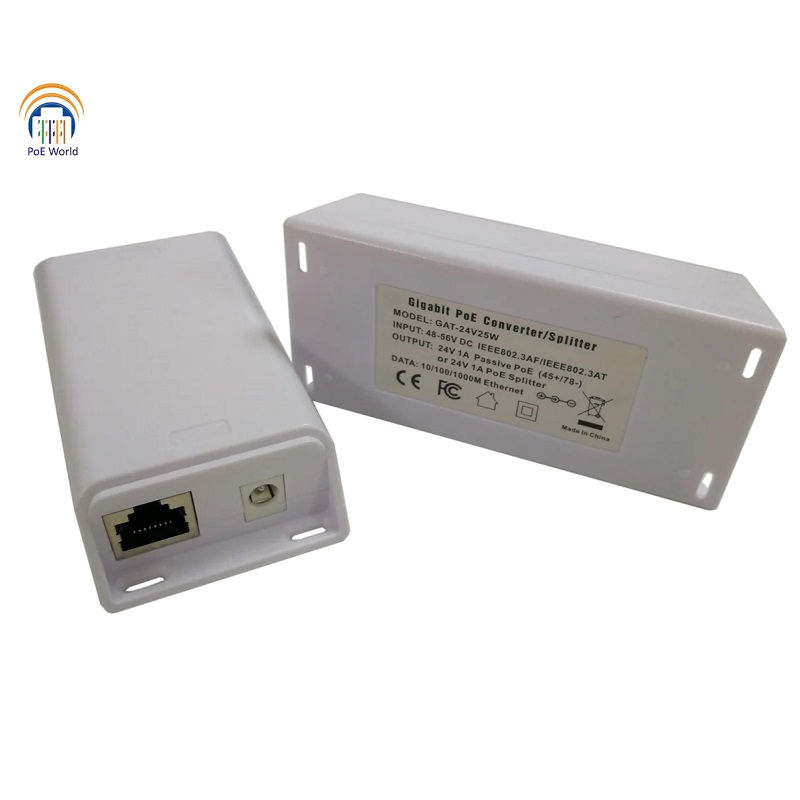

The PoE World 802.3at compatible Active PoE to 24v passive Gigabit Splitter - GAT-24v25w. provides a low cost solution for delivering Passive 24V PoE or 24 VDC on a 2.1mm Plug.
This device works with any 802.3at switch, it takes the 44 to 56 volts from the PoE switch, and converts that voltage to 24 volts and injects that onto mode B passive with gigabit data speeds. Many MikroTik devices need this function. Can also work with an 802.3af switch if the output is used below 13 watts. This PoE solution appears like a standard Class 4, 25 watt device to the switch. The PoE switch can send either polarity, and only 2 pairs are required for power, 4 pairs for gigabit data, 2 pairs for 10/100. The out put is fully isolated from the input voltage. Grounding is of no concern. In addition to Passive 24V PoE output operation, a DC connector can also supply 24VDC via the 2.1mm DC Socket which disables power to the RJ45 output. Note - inserting a plug into this connector disables power to the RJ45 output
This device works with any 802.3at switch, it takes the 44 to 56 volts from the PoE switch, and converts that voltage to 24 volts and injects that onto mode B passive with gigabit data speeds. Many MikroTik devices need this function. Can also work with an 802.3af switch if the output is used below 13 watts. This PoE solution appears like a standard Class 4, 25 watt device to the switch. The PoE switch can send either polarity, and only 2 pairs are required for power, 4 pairs for gigabit data, 2 pairs for 10/100. The out put is fully isolated from the input voltage. Grounding is of no concern. In addition to Passive 24V PoE output operation, a DC connector can also supply 24VDC via the 2.1mm DC Socket which disables power to the RJ45 output. Note - inserting a plug into this connector disables power to the RJ45 output
Features
- Perfect for adding a single 24v powered device to your 802.3at switch
- Acts as two devices in one: Use it to convert IEEE 802.3at PoE+ standard to 24 volt passive PoE OR Connect a 2.1 mm adapter and convert PoE+ power to 24 volt DC with "split" gigabit data on the RJ45 out port
- Compatible with Ubiquiti and Mikrotik
- Provides continuous 24 volts, 25 watts of power - Automatically converts voltage
- Mode A/B compatible
- 2.1mm x 5.5mm DC power plug standard output
| Details | |
|---|---|
| Manufacturer's Code | GAT-24v25w |
| Input Ethernet | 10/100/1000 mb/s |
| Output Ethernet | 10/100/1000 mb/s |
| Input Voltage | 802.3af / 802.3at / passive 44 to 57 volts at 570 mA max |
| Output PoE Voltage | 24 volts passive PoE 1% at 1.04 amps, 25 watts |
| PoE Power output RJ45 pins | 4&5 plus and 7&8 minus – mode B |
| DC Output via 2.1mm Plug | 24VDC, Note - inserting a plug into this connector disables power to the RJ45 output |
| Internal power use | 4000 mw ( keep alive 802.3af) |
| Operating Temperature | 0°C - 50°C |
| Data | Transparent |
| Isolation | 1500 Volts |
| Size | 107 x 50 x 25 mm |
| 802.3at | Class 4 |
| PoE Power input Pins | 1&2 and 3&6 – either polarity – mode A, 4&5 + and 7&8 minus – mode B, Shielded RJ45 |
| Data output | Shielded RJ45 |
| Power out DC connector | 2.1 mm x 5.5mm female connector |
| LED status on Female RJ45 | Right - Power In active = Green, Left - Power out active = Amber |
