Teltonika 1-Wire RFID Reader and accessories for fleet management devices. One of the implemented features for Teltonikas fleet management devices is the 1-Wire data protocol, which can be used to read RFID Tags by emulating them using iButton protocols. It is a convenient way to implement driver authorization in your vehicles if you want to use RFID tags with minimal setup complexity.
Features
- Immobilizer - prevent anyone from starting the vehicle without scanning an RFID tag first.
- Authorized driving - keep track of who is driving your vehicle according to the RFID tag they use to authenticate themselves.
- Auto Geofencing – gives ability to know when car leaves customized areas without RFID authorization.
| Details | |
|---|---|
| Product Code | PGEX00001510 |
| Interface | White wire – 1-wire data, Brown wire – power supply, Green - ground |
| Power supply range | 6.5-30 V DC |
| Frequency | 125 kHz |
| Type of transponder | Manchester, 64 cycles per bit |
| Antenna surface area | 6,8 cm2 |
| Reading range | 4 cm |
| Reading frequency | 6 times per second for identification, 2 times per second when transponder is in range of the reader |
| Supported 1-Wire commands | 0x33 (0x0F) - Read ROM, 0xF0 - Search ROM |
| Mounting method | M12 Thread |
| Cable length | 40 cm |
| Operating temperature | From -20 ºC to +55 ºC |
| Regulatory | RoHS certified |
| Details | |
|---|---|

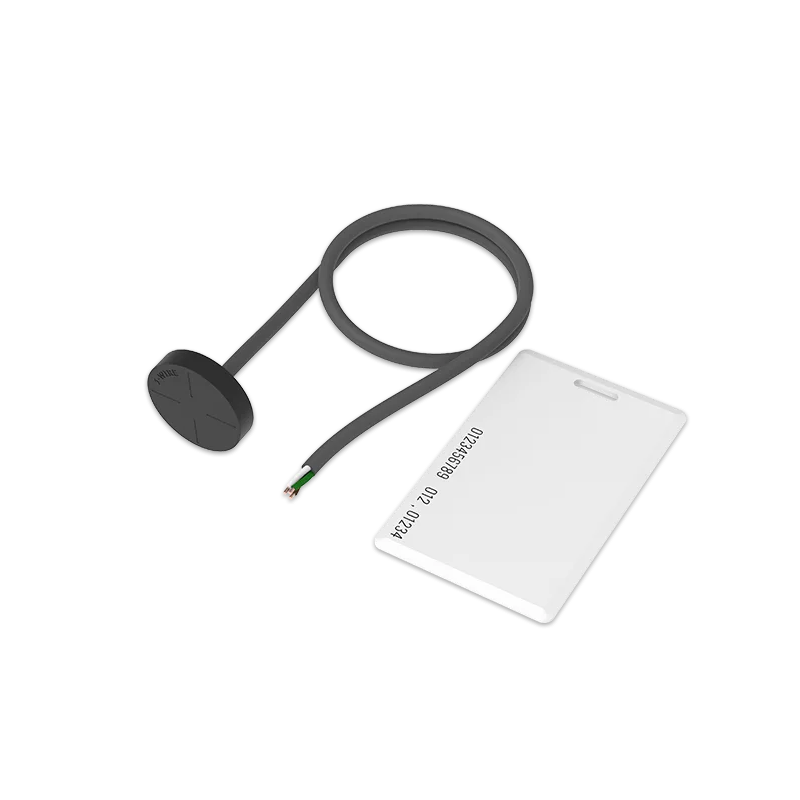

| Contents | 1x 1-Wire RFID reader and 1x RFID card |
