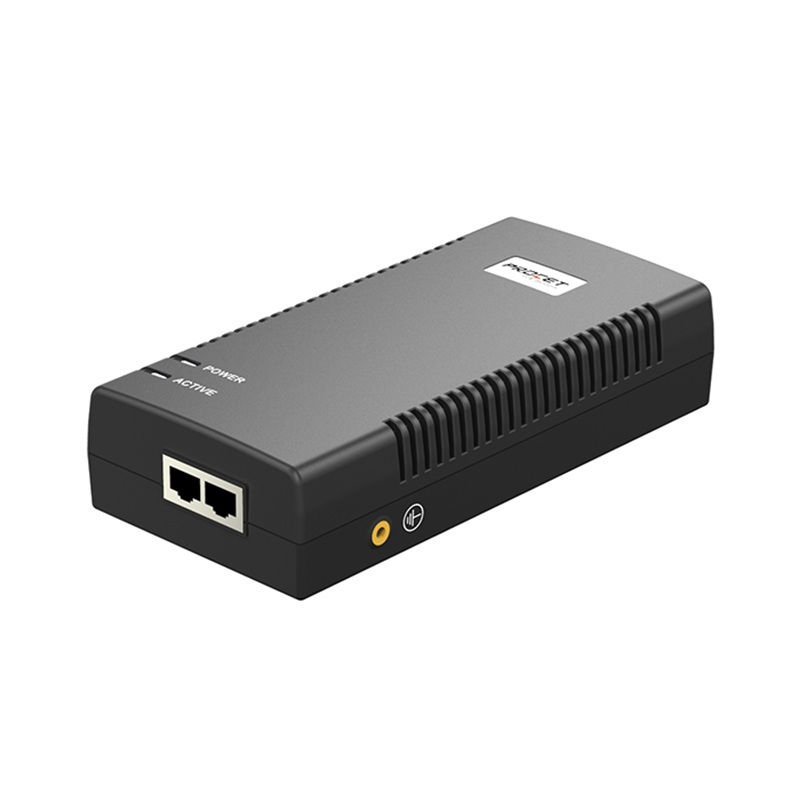

Procet 55V DC 90 Watt 10 Gigabit 802.3bt PoE++ Power over Ethernet Injector.
The Procet PT-PSE106GBR-10 is a single port PoE midspan Injector with 4 Pairs PoE up to 90 watts of power at 55VDC at 1.64A with 6KV (10/700us) surge protection. It supports not only 10/100/1000Mbps of data speed, but also 2.5GbE/5GbE/10GbE NBase-T. It works for 90W PoE PDs, such as wireless APs, base stations, high power cameras, door locks, displays, POS, information kiosks and other high power Ethernet terminals. It complies to 802.3bt and backward compatible with IEEE802.3af/at standard.
The Procet PT-PSE106GBR-10 is designed for indoor use. It works with wide input voltage of 100-240Vac.
It has detecting chip inside, which will detect and classify PD before powering it. It will not apply power until a standardcompliant PD is detected. The effective distance is 100 meters over Cat5e/Cat6 cables.
The Procet PT-PSE106GBR-10 is a single port PoE midspan Injector with 4 Pairs PoE up to 90 watts of power at 55VDC at 1.64A with 6KV (10/700us) surge protection. It supports not only 10/100/1000Mbps of data speed, but also 2.5GbE/5GbE/10GbE NBase-T. It works for 90W PoE PDs, such as wireless APs, base stations, high power cameras, door locks, displays, POS, information kiosks and other high power Ethernet terminals. It complies to 802.3bt and backward compatible with IEEE802.3af/at standard.
The Procet PT-PSE106GBR-10 is designed for indoor use. It works with wide input voltage of 100-240Vac.
It has detecting chip inside, which will detect and classify PD before powering it. It will not apply power until a standardcompliant PD is detected. The effective distance is 100 meters over Cat5e/Cat6 cables.
Features
- Input Voltage: 100-240Vac 2.0A 50/60Hz
- Output Power: 90W guarantee
- IEEE802.3af/at/bt PoE++ compliant
- Automatic detection and protection of non-standard devices (Active)
| Details | |
|---|---|
| Manufacturer's Code | PT-PSE106GBR-10 |
| Input | 100-240Vac 2.0A 50/60Hz |
| Output | 55Vdc 1640mA |
| Power Pins | 4/5(+), 7/8(-) and 3/6(+),1/2(-) |
| Data Speed | 10/100/1000Mbp & 2.5/5/10GbE |
| PoE Output | Fully compliant with IEEE802.3af/at/bt PoE standard |
| Operating Temperature | 0℃ to 40℃ |
| Operating Humidity | 20% to 80%, non-condensation |
| Storage Temperature | -20℃ to 70℃ |
| Storage Humidity | 10% to 90%, non-condensation |
| Operating Altitude | up to 5000meters |
| Other Standards | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-Tx Fast Ethernet, IEEE802.3ab 1000Base-T Gigabit Ethernet, IEEE802.3bz 2.5GbE/5GbE NBASE-T, Fully compliant with IEEE802.3af/at/bt PoE standard, RoHS Compliance, WEEE Compliance |
| EMI | FCC CFR47 Part 15, EN55032, EN55035 |
| Case | Plastic |
| Color | Black |
| IP Rated | IP40 |
| Size | 178.71mm X 85mm X 41mm |
| Weight | 500g |
| Details | |
|---|---|
| Power Cord | NZ 3 Pin Power Lead included |
RJ45
PoE (802.3af/at) , POE (802.3bt)
