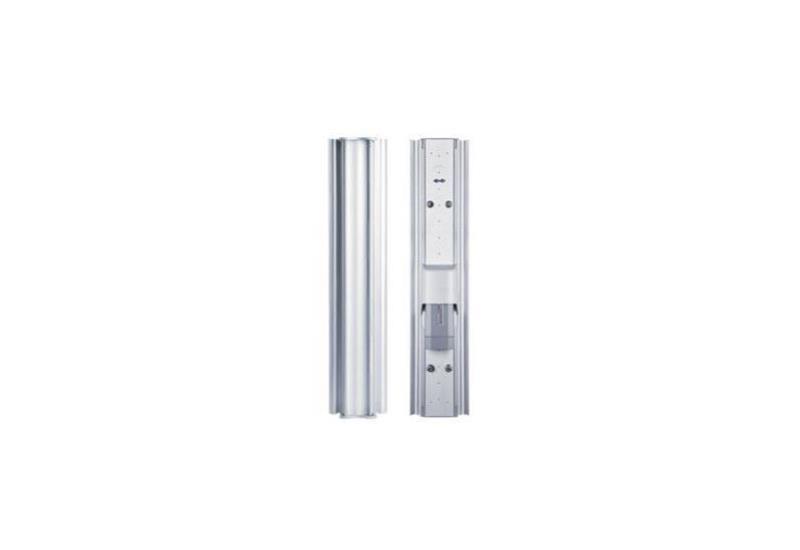

Ubiquiti 2.3GHz - 2.6GHz 15dBi Titanium Variable Sector Antenna

$85.00 +GST
Login for your price
30 In Stock
SKU: ANT-182
Ubiquiti 2.3GHz - 2.6GHz 15dBi Titanium Variable Sector Antenna (AM-V2G-Ti)
Warranty
Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*
Description
Specifications
Resources
Package Contents
Ubiquiti 2.3GHz - 2.6GHz 15dBi Titanium Variable Sector Antenna. Introducing the airMAX Titanium Sector, which continues the evolution of Ubiquiti’s best-in-class sector antennas. Advanced RF isolation and variable beamwidth configuration put the Titanium Sector at the forefront of sector antenna technology. Drawing on Ubiquiti’s depth of electrical and mechanical engineering expertise, Ubiquiti has developed the airMAX Titanium Sector to be highly resistant to noise interference in co-location deployments. Having adjustable beamwidth options enhances scalability and streamlines inventory. The airMAX Titanium Sector may be custom configured for any deployment requiring a 60deg, 90deg, or 120deg sector. The Ubiquiti Titanium Sector has an integrated Rocket mount that allows you to mount the Rocket without the use of any tools. The custom-designed Protective Shroud helps to shield your Rocket from the elements.
Features
  • Antenna gain increases respectively with each decrease in beamwidth. Gain is 15 dBi at 120deg, 16 dBi at 90deg, and 17 dBi at 60deg.
  • The airMAX Titanium Sector was specifically engineered for optimal performance when paired with a RocketM Titanium.
  • 20% increase in performance with PtMP networks
  • Up to 90% performance improvement in a co-location environment
  • Increased durability in harsh weather
  • Adjustable Beamwidth
  • Easily Mount and Protect Your Rocket
  • Suitable for 2.5GHz MSP applications
Details
Manufacturer's Product CodeAM-V2G-Ti
Frequency Range2.3 - 2.6 GHz
Gain17 dBi @ 60°, 16 dBi @ 90°, 15 dBi @ 120°
PolarisationDual-Linear
Cross Polarisation25 dB Typical
Max VSWR1.5:1
Horizontal Beamwidth60°/ 90°/ 120°
Elevation Beamwidth
Downtilt
Connector Type(2) RP-SMA Female
Dimensions773 x 372 x 120 mm
Wind Loading125 mph
Pole Mount Diameter38 - 75mm
Details
Pole MountYes
WarrantyStandard 12 Month RTB
RP-SMA
2.4GHz , 2.6GHz
