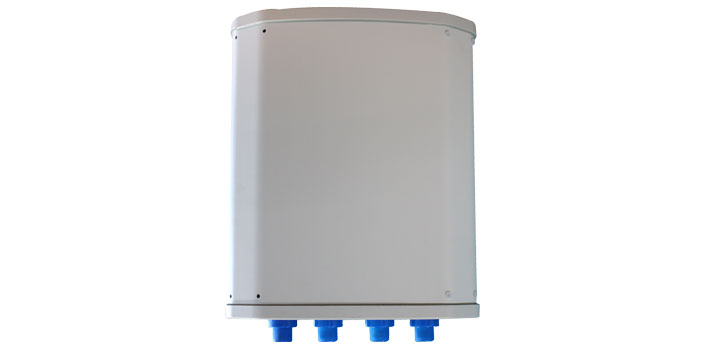

The ANT-253 is a 4 Port Tri-Band GSM/CDMA/PCS/3G/4G/5G/WLAN/LTE Broadband Directional Antenna with wideband frequency options including 698-960/1710-2700/3300-3800MHz. This antenna is the ideal solution for all of your cellular needs.
Features
- Broadband Directional Antenna with Low VSWR
- Seal with Radome, Strong Protection against the elements
- Supplied with stainless steel mast down-tilt bracket
- Perfect for RBI (Rural Broadband Initiative) Installations
- Suitable for LoRaWAN and Sigfox 868MHz and 923MHz IoT applications
| Details | |
|---|---|
| Manufacturer's Product Code | ANT-253 |
| Frequency range | Port 1&2 - 698-960, 1710-2700 MHz; Port 3&4 - 3300-3800, 3300-3800 MHz |
| Polarization | ±45 Deg |
| Gain | 6.5dBi |
| Half-power beam width | 60 Deg |
| Front-to-back ratio | 23dB |
| Cross-polar discrimination | 17dB |
| Isolation | 23dB |
| Impedance | 50 Ohm |
| VSWR | ≤1.5 |
| Intermodulation IM3 | 2×43dBm carrier ≤-150dBc |
| Maximum power | 200W |
| Lighting protection | DC Ground |
| Connectors | 4×7-16 DIN Female |
| Height/width/depth | 465×385×138mm |
| Details | |
|---|---|
| Pole Mount | Included |
5G
7-16 DIN
600-999MHz , 1700-2100MHz , 2.4GHz , 3GHz
