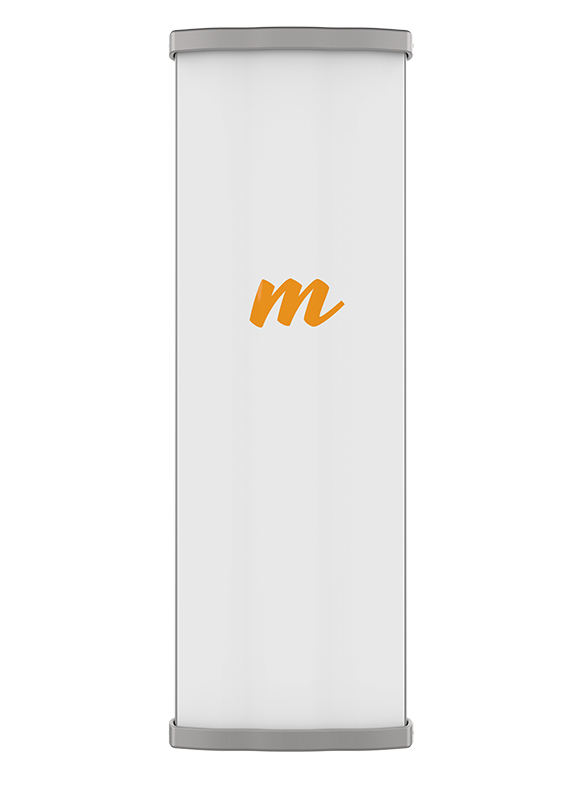

Mimosa 4.9GHz - 6.4GHz 45 Deg Sector Antenna, 19 dBi gain, 2 Port , includes LMR 240 Type N to Type N cables (2) and mounting brackets (2). The Mimosa N5-45 antennas, deliver all the gain and ground coverage of a sector antenna, with the amazing front-to-back and sidelobe performance of a horn. These 4.9-6.4 GHz, 45-degree sector antennas are custom-engineered for a variety of multipoint applications.
Using state-of-the-art RF design, the N5-45 antennas are custom-engineered to deliver a high-gain, 42º half-power beamwidth with non-existent side lobes.
With a front-to-back ratio of 43 dB, the N5-45 antennas utilize metalized end-caps and a precision engineered backplate extrusion to improve noise rejection.
Providing long-range tower or pole solutions for less dense coverage areas, four A5c devices plus eight N5-45x2 antennas enable cost-effective deployments with frequency re-use and 2 Gbps of capacity.
Using state-of-the-art RF design, the N5-45 antennas are custom-engineered to deliver a high-gain, 42º half-power beamwidth with non-existent side lobes.
With a front-to-back ratio of 43 dB, the N5-45 antennas utilize metalized end-caps and a precision engineered backplate extrusion to improve noise rejection.
Providing long-range tower or pole solutions for less dense coverage areas, four A5c devices plus eight N5-45x2 antennas enable cost-effective deployments with frequency re-use and 2 Gbps of capacity.
Features
- Optimized Ground Coverage
- No Side lobes
- Industry’s Highest Front-to-Back Ratio
- Beamformed High Gain
- Optimized Ground Coverage
| Details | |
|---|---|
| Manufacturer's Product Code | N5-45X2 |
| Gain | 19dBi |
| Polarization | Dual-slant 45º |
| Azimuth Beamwidth | (4 dB): 45º |
| Elevation Beamwidth | (3 db): 9º |
| Electrical Downtilt | 2º |
| Front-to-Back Ratio (min) | 43 dB |
| Cross-Polar Isolation | >30 dB |
| Port-to-Port Isolation | >10 dB |
| RF Connectors | 2 N-type female (includes two 1 meter LMR 240 Type-N to Type-N cables) |
| Impedance | 50 Ω |
| Max Input Power | 30 dBm |
| Enclosure Characteristics | Outdoor, UV stabilized, engineered polymer |
| Details | |
|---|---|
| Pole Mount Bracket | Incuded |
| RF Cables | Includes two 1 meter LMR 240 Type-N to Type-N cables |
