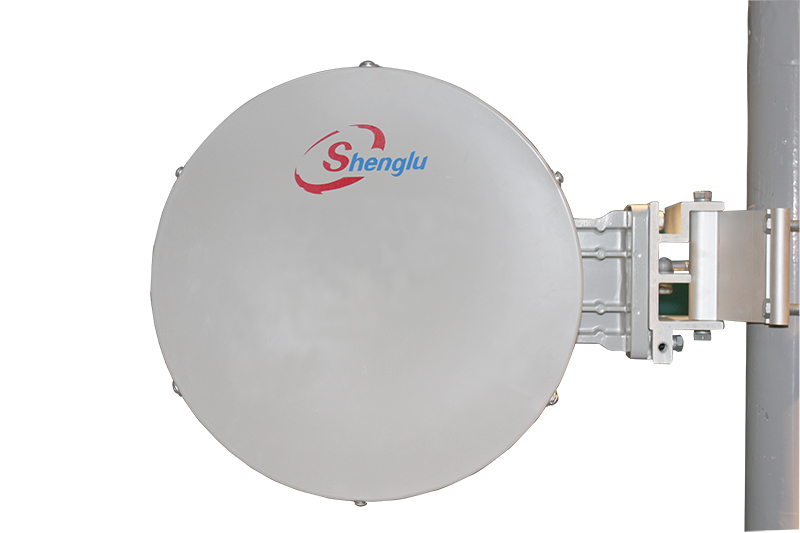

Shenglu 0.3m Ultra High Performance Low Profile Dual Polarised 5.25-5.85GHz Antenna suitable for high end Point to Point backhaul applications.
| Details | |
|---|---|
| Manufacturer's Product Code | SLA0305D2S37N20 (SLG0352SS27N) |
| Frequency Range | 5.25 - 5.85GHz |
| Gain | 23.9dBi (Top); 23.4dBi (Mid); 22.9dBi (Low) |
| Front-to-Back Ratio | 44dB |
| Cross Polar Discrimination (XPD) | 30dB |
| Beamwidth | 9.9deg |
| VSWR | 1.80 |
| Isolation | 35dB |
| Return Loss | 10.881dB |
| Diameter | 300 x 300 x 152.08mm |
| Mounting Diameter | 51-114mm |
| Details | |
|---|---|
| Warranty | Standard 12 Month RTB |
5GHz
N-Type
