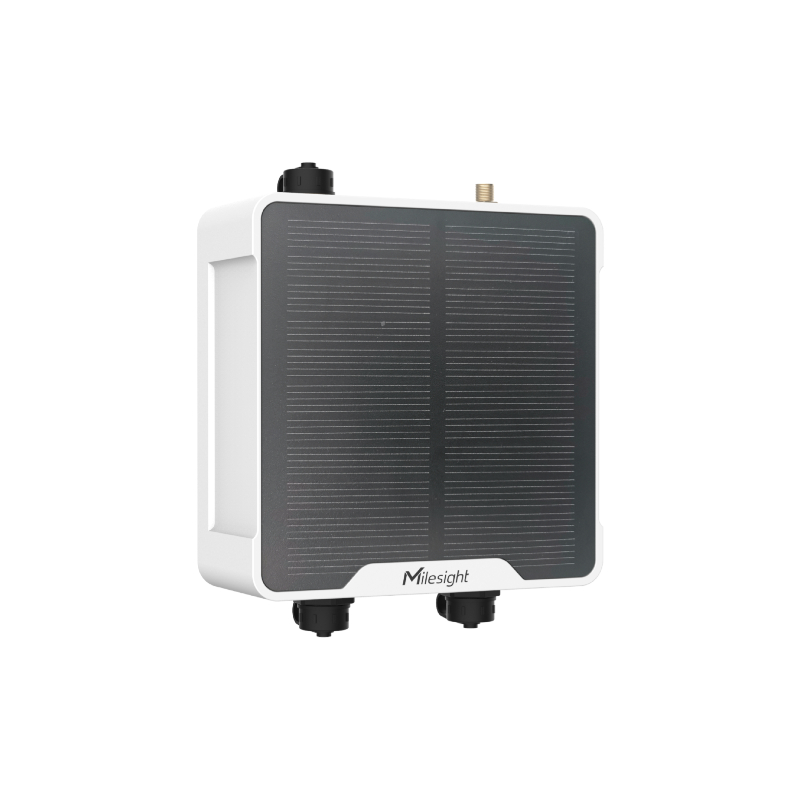

The UC511 V3 LoRaWAN AU915/AS923 wireless IoT controller is a device used to control the status of DC latching solenoids. It contains 2 solenoid interfaces and 1 pulse interface, which supports 2 pulse meters. The UC511 V3 can be easily and quickly configured by NFC or USB-C. For outdoor applications, it uses an embedded solar power supply and is equipped with an IP67-rated enclosure and M12 connectors to protect from water and dust under harsh environments.
The UC511 V3 is perfect for multiple use cases including Golf Course/Farm/Lifestyle irrigation, Dust suppression, frost suppression, etc.
Need help selecting the right IoT solution?
Go Wireless NZ now offers a full consultation service through its subsidiary company Scopious IoT Ltd to help you to start building your IoT network today. We now offer a full service, including everything from the LoRaWAN Network Server, automated bulk provisioning of gateways and devices, simple field force onboarding tools, vendor relationships for IoT hardware design services, Integrations and API’s for third party connectivity.
Consult with Scopious IoT today!
The UC511 V3 is perfect for multiple use cases including Golf Course/Farm/Lifestyle irrigation, Dust suppression, frost suppression, etc.
Need help selecting the right IoT solution?
Go Wireless NZ now offers a full consultation service through its subsidiary company Scopious IoT Ltd to help you to start building your IoT network today. We now offer a full service, including everything from the LoRaWAN Network Server, automated bulk provisioning of gateways and devices, simple field force onboarding tools, vendor relationships for IoT hardware design services, Integrations and API’s for third party connectivity.
Consult with Scopious IoT today!
Features
- Compatible with standard DC latching solenoids
- Transmission distance up to 11km with line of sight
- Waterproof design including IP67 case and M12 connectors
- Solar powered
- Quick wireless configuration via NFC
- Data visualization and remote management via Milesight IoT Cloud
- External Lora Antenna
| Details | |
|---|---|
| Manufacturer's Code | UC511-DI-915M V3 PN:EA |
| Frequency | AU915/AS923 |
| Tx Power | 20dbm |
| Sensitivity | -147dBm @300bps |
| Mode | OTAA/ABP |
| Interface type | M12 A-coded Male |
| Ports | 2 × Solenoid Interfaces, SMA-Female connector |
| Solenoid Support | 2 wires 12V DC latching solenoids |
| Cable Length | 1.5m |
| Pulse Interface | 1 × Pulse Interface, support 2 pulse meters |
| Logical Level | Low: 0~0.9V, High: 2.5~3.3V |
| Cable Length | 1.5m |
| Power On/Off | NFC, power button (Internal) |
| Configuration | Mobile APP(via NFC) or PC software(via USB Type-C) |
| Operating Temperature | -20°C to +60°C |
| Ingress Protection | IP67 |
| Dimension | 120.1 × 120.1× 55.4 mm |
| Power Supply | Solar powered + 2*2550mAh rechargeable battery + 5-24 VDC supply |
| Details | |
|---|---|
| Included | 2 × DC Solenoid Cables, 1 × Data Cable, Mounting screws, Screwcaps, Warranty Card |
