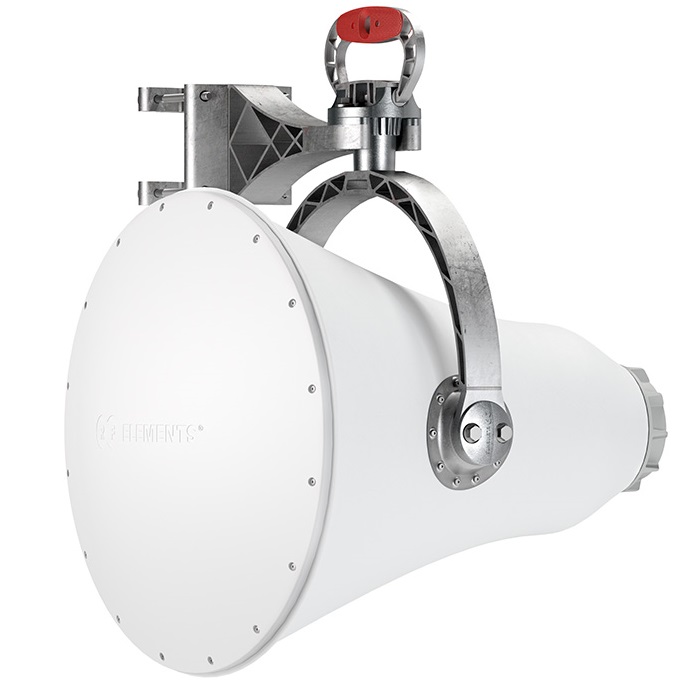

RF Elements UltraHorn 5180 - 6775MHz 24dBi TwistPort Horn Antenna. UltraHorn TwistPort antennas are highly directional scalar horn antennas. They offer all the benefits of scalar horns: ultra-noise rejection, lossless connection of radio and symmetrical beam with no side lobes. These unique radiation properties make them excellent antennas for long links in environments with a high level of noise.
RF Elements UltraHorn TwistPort antennas are truly directional antennas: signal is focused only to a main beam without any side lobes. Precise radiation patterns of UltraHorn antennas allow you to create long links in high noise environment with unprecedented performance. The optimal beamwidth makes aiming very simple compared to other point-to-point antennas.
UltraHorn TwistPort Antennas feature our industry changing TwistPort connector, a patent pending quick locking waveguide port. There are no coaxial RF connectors or RF cables anymore that makes TwistPort virtually lossless connector. Connection of radio is brilliantly simple - “twist and lock” - all done with one hand!
Due to the size of these items they are excluded from our free freight option. Freight will be added to all invoices once confirmed and amount will depend on your location.
RF Elements UltraHorn TwistPort antennas are truly directional antennas: signal is focused only to a main beam without any side lobes. Precise radiation patterns of UltraHorn antennas allow you to create long links in high noise environment with unprecedented performance. The optimal beamwidth makes aiming very simple compared to other point-to-point antennas.
UltraHorn TwistPort Antennas feature our industry changing TwistPort connector, a patent pending quick locking waveguide port. There are no coaxial RF connectors or RF cables anymore that makes TwistPort virtually lossless connector. Connection of radio is brilliantly simple - “twist and lock” - all done with one hand!
Due to the size of these items they are excluded from our free freight option. Freight will be added to all invoices once confirmed and amount will depend on your location.
Features
- Ultimate Noise Rejecting Horn Antenna
- Unique Beam Without Side Lobes
- Ultimate Noise Rejection
- Zero Loss
- Easy Installation
- TwistPort adaptor purchased separately
- Frequency Range 5180 to 6775MHz
| Details | |
|---|---|
| Product Code | UH-TP-5-24 |
| Frequency Range | 5180 - 6775MHz |
| Gain | 24 dBi |
| Azimuth/Elevation Beam Width | -3 dB H 11° / V 11° |
| Azimuth/Elevation Beam Width | -6 dB H 16° / V 15° |
| Polarization | Double linear H+V |
| Front-to-Back Ratio | 40 dB |
| Antenna Connection | TwistPortTM - Quick Locking Waveguide Port |
| Antenna Type | Horn |
| Enviromental | IP55 |
| Pole Mounting Diameter | 30-80 mm |
| Temperature | -30°C to +55°C (-22°F to +131°F) |
| Wind Survival | 160 km/hour |
| Wind Loading | 150/104 N - Front/Side at 160 km/h (100 mi/h) |
| Materials | UV Resistant ABS Plastic, Polycarbonate, Polypropylene, Aluminium, Stainless Steel |
| Details | |
|---|---|
| Pole Mount | Yes - Bracket Included |
| Warranty | Standard 12 Month RTB |
