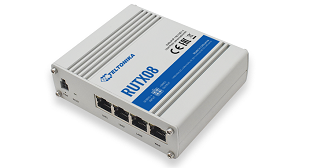

Teltonika RUTX08 Industrial Gigabit VPN Router. RUTX08 is a durable and powerful Ethernet-to-Ethernet industrial VPN router that runs on RutOS - an advanced OpenWRT based operating system. It has four Gigabit Ethernet ports with speeds up to 1000 Mbps.
A rugged aluminum housing and industrial networking protocol support make RUTX08 a perfect choice for professional applications.
These powerful specifications combined with RutOS software features, such as multiple supported VPN services, advanced Firewall, and Remote Management System (RMS) make this device a superb performer, where no cellular or Wi-Fi connectivity is required.
A rugged aluminum housing and industrial networking protocol support make RUTX08 a perfect choice for professional applications.
These powerful specifications combined with RutOS software features, such as multiple supported VPN services, advanced Firewall, and Remote Management System (RMS) make this device a superb performer, where no cellular or Wi-Fi connectivity is required.
Features
- 4 x Gigabit Ethernet ports with up to 128 port/tag-based VLANs supported
- Digital Input / Output for remote monitoring and control and USB 2.0 interface
- 9-50V DC This router supports a wide range of power supply voltage for versatile integration
- Multiple protocols supported including MQTT, Modbus TCP, BGP, GRE
- Firewall and numerous VPN services including OpenVPN, IPsec, PPTP, L2TP & DMVPN
- RMS Compatible with Teltonika Remote Management System
| Details | |
|---|---|
| Product code | RUTX08 |
| CPU | Quad-core ARM Cortex A7, 717 MHz |
| RAM | 256 MB, DDR3 |
| FLASH storage | 256 MB, SPI Flash |
| Operating system | RutOS (OpenWrt based Linux OS) |
| Supported languages | Busybox shell, Lua, C, C++ |
| Development tools | SDK package with build environment provided |
| WAN | 1 x WAN port (can be configured as LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| LAN | 3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| I/Os | 1 x Digital Input, 1 x Digital Output on 4 pin power connector |
| Status LEDs | 8 x LAN status LEDs, 1 x Power LED |
| USB | 1 x USB A port for external devices |
| Reset | Reboot/User default reset/Factory reset button |
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP) |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SNMP, MQTT, Wake on LAN (WOL), DLNA |
| VoIP passthrough support | H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
| Connection monitoring | Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Firewall | Port forwards, traffic rules, custom rules |
| DHCP | Static and dynamic IP allocation, DHCP Relay, Relayed |
| QoS / Smart Queue Management (SQM) | Traffic priority queuing by source/destination, service, protocol or port |
| DDNS | Supported >25 service providers, others can be configured manually |
| Network backup | VRRP |
| Hotspot | Internal/external Radius server, captive portal, built in customizable landing page |
| SSHFS | Possibility to mount remote file system via SSH protocol |
| Authentication | Pre-shared key, digital certificates, X.509 certificates |
| Firewall | Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T |
| Attack prevention | DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
| VLAN | Port and tag based VLAN separation |
| WEB filter | Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only |
| Access control | Flexible access control of TCP, UDP, ICMP packets, MAC address filter |
| VPN Support | OpenVPN, OpenVPN Encryption, IPsec, GRE tunnel, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard |
| POWER Connector | 4 pin industrial DC power socket |
| Input voltage range | 9 - 50 VDC, reverse polarity protection, voltage surge/transient protection |
| PoE (passive) | Passive PoE. Possibility to power up through LAN port, not compatible with IEEE 802.3af, 802.3at and 802.3bt standards |
| Power consumption | 6 W Max |
| Casing material | Aluminium housing with DIN tail mounting option |
| Dimensions (W x H x D) | 115 x 32.2 x 95.2 mm |
| Weight | 345 g |
| Mounting options | DIN rail, flat surface placement |
| Standards | EN 55032:2015, EN 55035:2017, ESD EN 61000-4-2:2009, RS EN 61000-4-3:2006+A1:2008+A2:2010, EFT EN 61000-4-4:2012, Surge protection EN 61000-4-5:2014 CS EN 61000-4-6:2014, DIP EN 61000-4-11:2004, Safety IEC 62368-1:2014 EN 62368-1:2014+A11:2017 |
| Details | |
|---|---|
| Included | Router RUTX08, 18 W Power Supply, Ethernet cable (1.5 m), QSG (Quick Start Guide), RMS Flyer |
Teltonika RMS
1Gbps
RJ45 , USB
