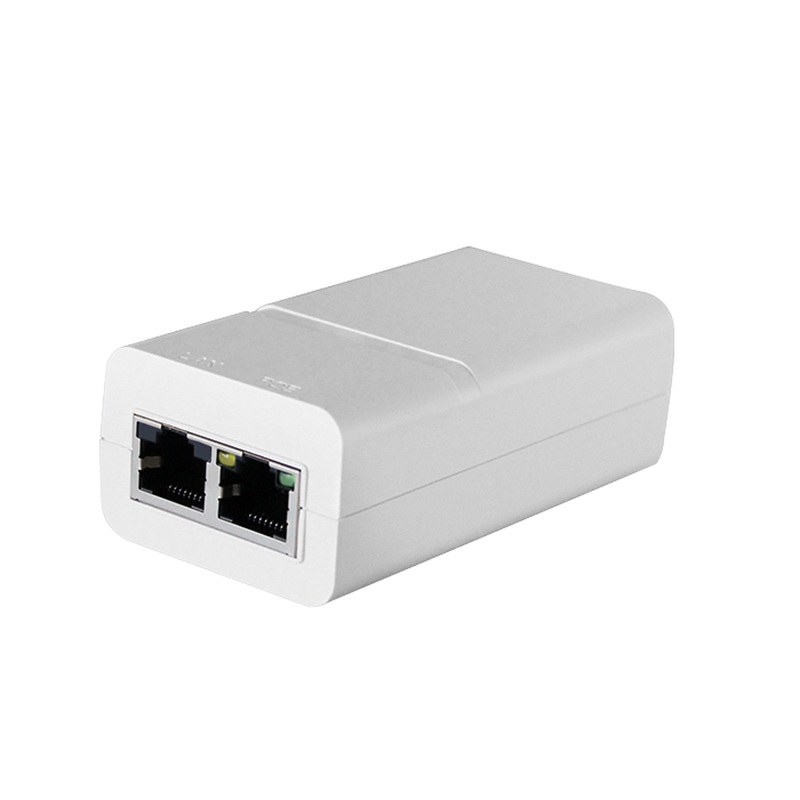

Procet 48V DC 15.4 Watt Gigabit 802.3af PoE White Midspan Injector.
The Procet EN15GF is an indoor rated active PoE midspan Injector specially designed for complex backhaul and networking applications. It provides 48Vdc, 0.32A power for remote PDs over 2 pairs output. It supports both 10/100 Base-T and Gigabit devices.
The Procet EN15GF works for 15.4W PoE PDs, such as wireless APs, Wifi routers, Network cameras, IP Phones, Microwave Radio and other power Ethernet terminals. It fully complies to the IEEE802.3af PoE standard.
Enclosed in an IP40 fire retardant plastic case. It works with a wide input voltage of 100-240 VAC, 50 or 60 Hz. It has a detection chip inside, which will detect and classify PD before powering it. It will not provide power until a standard-compliant PD is detected.
The effective distance is 100 meters over Cat5e/Cat6 cables. It is small in size but high performance.
The Procet EN15GF is an indoor rated active PoE midspan Injector specially designed for complex backhaul and networking applications. It provides 48Vdc, 0.32A power for remote PDs over 2 pairs output. It supports both 10/100 Base-T and Gigabit devices.
The Procet EN15GF works for 15.4W PoE PDs, such as wireless APs, Wifi routers, Network cameras, IP Phones, Microwave Radio and other power Ethernet terminals. It fully complies to the IEEE802.3af PoE standard.
Enclosed in an IP40 fire retardant plastic case. It works with a wide input voltage of 100-240 VAC, 50 or 60 Hz. It has a detection chip inside, which will detect and classify PD before powering it. It will not provide power until a standard-compliant PD is detected.
The effective distance is 100 meters over Cat5e/Cat6 cables. It is small in size but high performance.
Features
- Input Voltage: 100-240Vac 0.5A 50/60Hz
- Output Power: 15.4W guarantee
- IEEE802.3af / PoE compliant
- Automatic detection and protection of non-standard devices (Active)
| Details | |
|---|---|
| Manufacturer's Code | EN15GF |
| Input | 100-240Vac 0.5A 50/60Hz |
| Output | 48Vdc 320mA |
| Power Pins | 4/5(+), 7/8(-) |
| Data Speed | 10/100/1000Mbps |
| PoE Output | Fully compliant with IEEE802.3af PoE standard |
| Operating Temperature | 0℃ to 40℃ |
| Operating Humidity | 20% to 80%, non-condensation |
| Storage Temperature | -20℃ to 70℃ |
| Storage Humidity | 10% to 90%, non-condensation |
| Operating Altitude | up to 2000meters |
| Other Standards | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-Tx Fast Ethernet, IEEE802.3ab 1000Base-T Gigabit Ethernet, RoHS Compliance, WEEE Compliance |
| EMI | FCC CFR47 Part 15, EN55032, EN55035 |
| Case Material | Plastic |
| Color | White |
| IP Rated | IP40 |
| Size | 95.3mm X 51mm X 34.5mm |
| Weight | 135g |
| Details | |
|---|---|
| Power Cord | NZ 3 Pin Power Lead included |
RJ45
PoE (802.3af/at)
