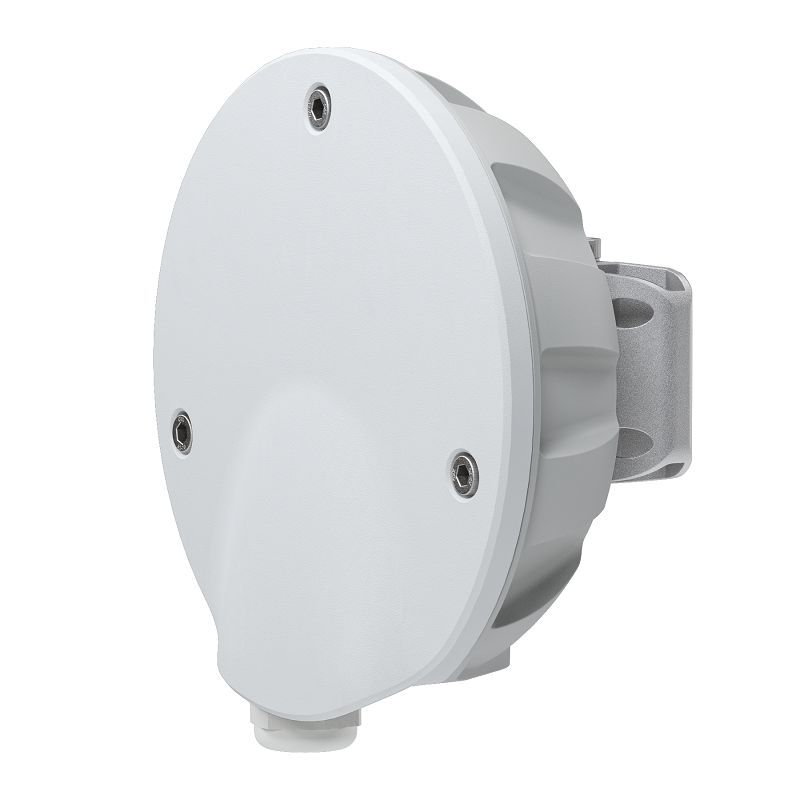

RF Elements StationBox ALU-Mini. SBX-AM is compact premium outdoor enclosure for IoT devices and wireless platforms. SBX-AM is made of cast aluminium. The robust, full-metal construction is geared towards excellent environment resistance. The slick mounting mechanism allows installation of SBX-AM on a pole or wall.
SBX-AM is designed for solution builders. 3D data set allows for easy DIY mounting plate design, 3D printing or easy electronics PCB layout customization.
The all new mounting bracket on the StationBox® ALU-Mini enables easy and quick installation on a pole or a wall. The bracket is made of extruded aluminium to maximize the durability.
SBX-AM is designed for solution builders. 3D data set allows for easy DIY mounting plate design, 3D printing or easy electronics PCB layout customization.
The all new mounting bracket on the StationBox® ALU-Mini enables easy and quick installation on a pole or a wall. The bracket is made of extruded aluminium to maximize the durability.
Features
- Versatile Outdoor Enclosure
- Customize the mounting plate
- IP55 Aluminium Enclosure (IP66 can be achieved by sealing the drain holes)
- Easy Installation Pole Mountable
| Details | |
|---|---|
| Manufacturer's Product Code | SBX-AM |
| Connectors | 1 cable gland M20 |
| Materials | Body - Aluminium Alloy, Bracket - Aluminium Alloy, Hardware - Stainless Steel |
| Temperature | -40degC to +60degC |
| Wind Survival | 160 km/h |
| Environment Resistance | IP55 (IP66 can be achieved by sealing the drain holes) |
| Mounting Diameter | 20-75 mm (we recommend as close to 75mm Pole as possible) |
| Weight | 0.78 kg / 1.7 lbs – single unit |
| Dimensions | 173mm x 185mm x 104mm |
| Details | |
|---|---|
| Included | StationBox ALU-Mini, Mounting Bracket, Blind Plate, Hose Clamp, 2x Screw M3 x 10 mm, 4x Screw 3,5 x 45 mm with Wall Plug |
