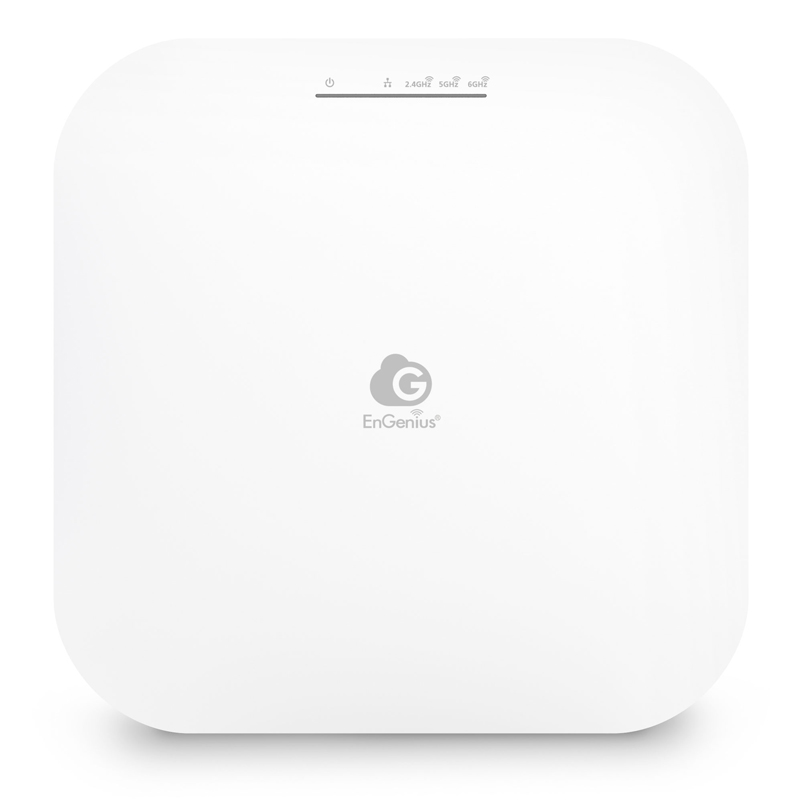

EnGenius Cloud Managed Wi-Fi 7 2x3x3 Access Point ECW516L is a cost-effective model designed for small businesses. It support tri-concurrent 802.11be architecture, delivering speeds up to 700 Mbps on the 2.4GHz, 4,300 Mbps on the 5GHz, and 8,700 Mbps on the 6GHz band, providing high-performance connectivity. With seamless integration into the EnGenius Cloud platform, it offers easy management and robust security through WPA3, making it an ideal solution for businesses seeking enterprise-grade performance at an affordable price.
EnGenius Cloud is built on top of the most advanced cloud computing technology. Scalable and AI-ready, the robust and dynamic cloud computing infrastructure helps you work smart on your network with important analytics and visualization tools.
Deploy and Monitor Your Networks with EnGenius Cloud App: Easy device deployment, visualized monitoring, and alerts for abnormal network activity available within an intuitive mobile app.
Configure with EnGenius Cloud Here.
EnGenius Cloud is built on top of the most advanced cloud computing technology. Scalable and AI-ready, the robust and dynamic cloud computing infrastructure helps you work smart on your network with important analytics and visualization tools.
Deploy and Monitor Your Networks with EnGenius Cloud App: Easy device deployment, visualized monitoring, and alerts for abnormal network activity available within an intuitive mobile app.
Configure with EnGenius Cloud Here.
Features
- Wi-Fi 7 Technology: Tri-concurrent 802.11be architecture with backward compatibility for legacy Wi-Fi devices.
- High-Performance Speeds: Delivers 8,700 Mbps (6GHz), 4,300 Mbps (5GHz), and 700 Mbps (2.4GHz) throughput.
- Advanced Security: Integrated WPA3 and WPA2-AES authentication protection.
- Professional-Grade Antenna: 5 dBi integrated system with 2x2 (2.4GHz) and 3x3 (5GHz/6GHz) configuration.
- Versatile Connectivity: 2.5GE PoE+ port for power and high-speed networking.
- Cloud Management: Free local and remote management via EnGenius Cloud.
- Flexible Deployment: Multiple operating modes with AP, STA, and Mesh support.
| Details | |
|---|---|
| Manufacturer's Code | ECW516L |
| WiFi Standards | WiFi 4/5/6/7 |
| Antenna | 2 x 2.4 GHz: 5 dBi, 3 x 5 GHz: 5 dBi, 3 x 6 GHz: 5 dBi |
| Physical Interfaces | 1 x 2.5GE Port (PoE+), 1 x DC Jack, 1 x Reset Button |
| Power Source | PoE: 802.3at Input, 12VDC /2A Power Adapter (Not included) |
| Maximum Power Consumption | 20.7W |
| Operating Frequency | Tri-Radio Concurrent 2.4 GHz & 5 GHz & 6 GHz |
| Operation Modes | Managed mode: AP, AP Mesh, Mesh |
| Frequency Radio | 2.4 GHz: 2400 MHz ~ 2482 MHz, 5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz, 6 GHz: 5925-7125MHz |
| Maximum Transmit Power | 22 dBm @ 2.4 GHz, 22 dBm @ 5 GHz, 22 dBm @ 6 GHz |
| Local Web Access | Supports HTTP or HTTPS |
| Operating Temperature Range | 0 ºC~40 ºC |
| Storage Temperature Range | -40 ºC~80 ºC |
| Operating Humidity (non-condensing) | 90% or less |
| Dimensions (WxLxH) | 205 x 205 x 33mm |
| DFS Certification | FCC/CE/IC |
| Details | |
|---|---|
| Warranty | Standard 24 Month RTB |
| Mounting | Ceiling and Mounting Bases (9/16" and 15/16" Trails) |
1Gbps
Wi-Fi 7
2.4GHz , 5GHz , 6-38GHz
PoE (802.3af/at)
