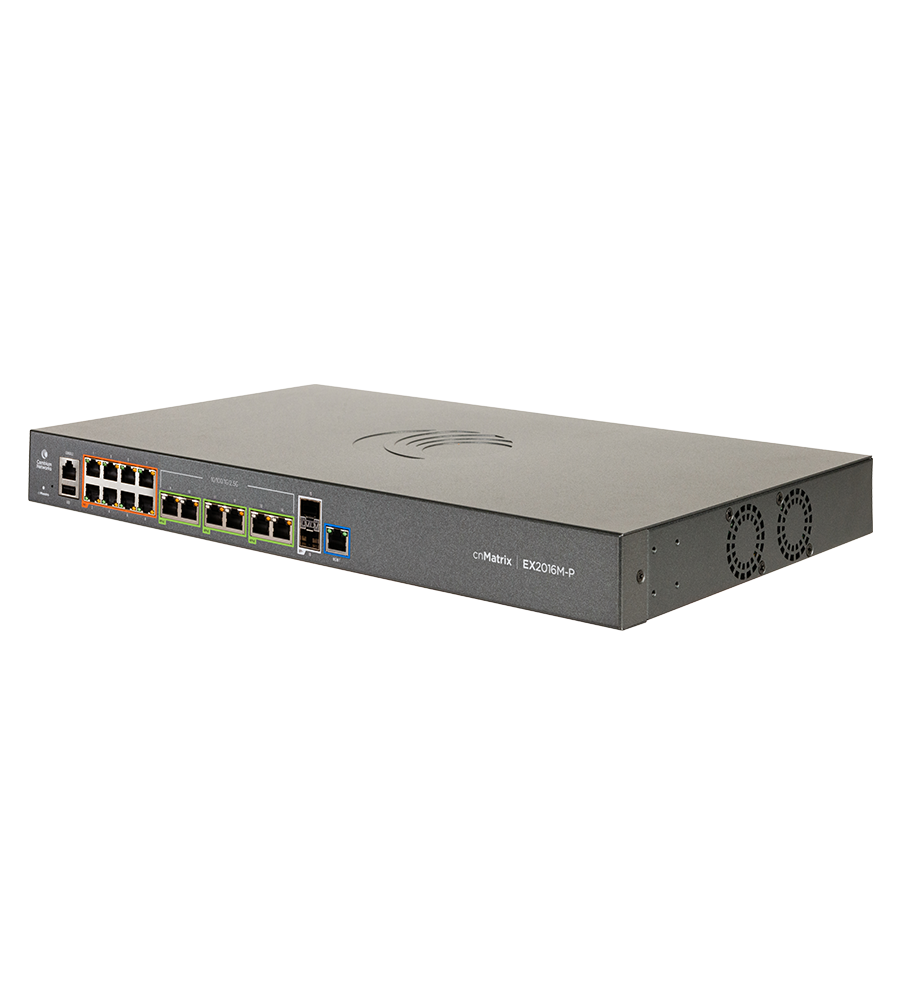

Cambium cnMatrix EX2016M-P 16-Port Enterprise Cloud Managed PoE Switch with SFP+.
Cambium Networks’ next generation switching platform offers a cloud managed, high performance, feature rich enterprise grade ethernet switching solution.
The cnMatrix series of fully managed switches delivers full Layer 2 and Layer 3 capabilities with enhanced access security. Depending on the model, the cnMatrix EX2000 series offers flexibility with SFP+ (10 Gbps) or SFP (1 Gbps) uplink ports. These switches come with a 5-year limited lifetime warranty.
Cambium Networks’ next generation switching platform offers a cloud managed, high performance, feature rich enterprise grade ethernet switching solution.
The cnMatrix series of fully managed switches delivers full Layer 2 and Layer 3 capabilities with enhanced access security. Depending on the model, the cnMatrix EX2000 series offers flexibility with SFP+ (10 Gbps) or SFP (1 Gbps) uplink ports. These switches come with a 5-year limited lifetime warranty.
Features
- 6 x 2.5 Gigabit Compatible Ethernet Ports
- Easy and simple, free cloud (or on premise) management with cnMaestro™ or XMS*
- Zero-touch deployment of switches makes installation easy
- Policy Based Automation eliminates manual and time consuming configuration
- Enhanced Security with automated device profiling and segmentation
- Policy Based Automation eliminates manual configuration during adds, moves and changes of network devices
- Unified Wired-Wireless access solution
- Non-blocking, line-rate architecture with fully featured L2/L3 switching
- Limited lifetime warranty (5 Years)
| Details | |
|---|---|
| Product code | MXEX2016MXPA00 |
| Non-Blocking Throughput | 86Gbps |
| Forwarding Rate in Mpps (64 Byte Packets) | 120 |
| Packet Buffer | 1.5 MB |
| 10/100/1000 Ports | 8 |
| 2.5 G Ports | 6 |
| Uplink Ports | 2 SFP+ |
| PoE+ Enabled Ports 802.3af/at | 8 |
| PoE+ Enabled Ports 802.3af/at/bt | 6 |
| Serial Console | Yes |
| USB | Yes |
| Out-of-Band Management Port | Yes |
| Rack Mount Kit | Included |
| Internal Fans | 2 |
| Reset Button | Yes |
| MAC Address Table Size | 16K |
| VLANs (simultaneous) | 4K |
| QinQ | Yes |
| LACP/Trunking | 8 LAGs/8 links per LAG |
| Policy Based Automation | Yes |
| Power Supply | 100–240 VAC |
| Max Switch Power (with Traffic) | 26.76W |
| MTBF (Hours) | 385,242 |
| Flash Storage | 128 MB |
| DRAM | 256 MB |
| Weight | 3.6 kg (7.93 lb) |
| Dimensions | 44 x 4.4 x 25 cm (17.3 x 1.75 x 9.85 in) |
| PoE+ Power Budget | 240W |
| PoE + Voltage | 54V |
| PoE Max Power per Port | 30W, 60W |
| Temperature Ranges | 0° to 50°C (32° to 122°F) |
| Operating Humidity | 55° at 95% RH |
| Storage Temperature | -40° to 70°C (-40° to 158°F) |
| Details | |
|---|---|
| Power Supply | (1) IEC Power Cord |
| Mounting Hardware | 1U Rackmount Kit Included |
cnMaestro
RJ45 , SFP+
PoE (802.3af/at) , POE (802.3bt)
