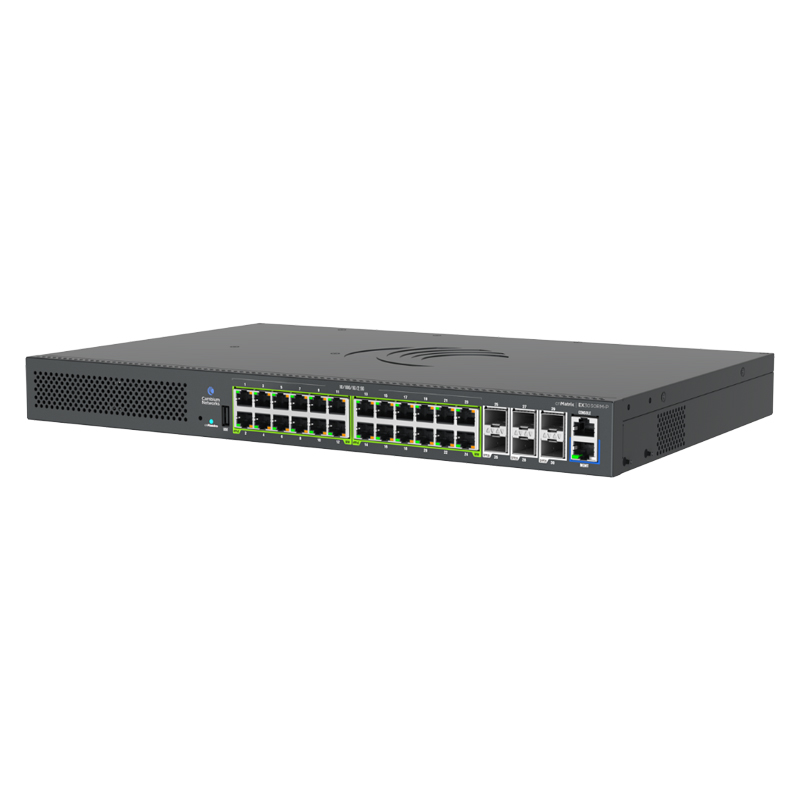

Cambium cnMatrix EX3030RM-P Intelligent Ethernet Switch with 2.5GbE PoE++ Access Ports and SFP28 Uplink Ports.
The Cambium cnMatrix™ series of fully managed Ethernet switches delivers full Layer 2 and Layer 3 capabilities with enhanced access security. The EX3030RM-P offers 24 2.5G/1G access ports with 6 x 25G SFP28 uplink ports. The EX3030RM-P switch also feature up to 90W of PoE max power per port. These switches come with a 5-Year limited lifetime warranty.
Note the EX3030RM-P supports Common Removeable Power Supplies (CRPS), which are sold separately. No power supply is included with this switch.
The Cambium cnMatrix™ series of fully managed Ethernet switches delivers full Layer 2 and Layer 3 capabilities with enhanced access security. The EX3030RM-P offers 24 2.5G/1G access ports with 6 x 25G SFP28 uplink ports. The EX3030RM-P switch also feature up to 90W of PoE max power per port. These switches come with a 5-Year limited lifetime warranty.
Note the EX3030RM-P supports Common Removeable Power Supplies (CRPS), which are sold separately. No power supply is included with this switch.
Features
- Enterprise‑grade multi‑gig switch with 24 × 2.5G access ports for high‑density Wi‑Fi 6/6E/7 deployments
- Full 90 W PoE++ (802.3bt) support on every access port to power next‑generation access points, cameras, and IoT devices
- 6 × 25G SFP28 uplinks deliver high‑capacity aggregation for campus and core switching scenarios
- Non-blocking, line-rate architecture with fully-featured profiling and segmentation
- Simple and scalable cloud (or on premise) control with cnMaestro™ Network Management
- Zero-touch deployment that makes installation plug-and-play easy
- Policy-based automation eliminating manual and time-consuming configuration
- Enhanced Security with automated device profiling and segmentation
- Unified wired, wireless, security, SD-WAN, and fiber solution as part of Cambium’s ONE Network
| Details | |
|---|---|
| Product code | MXEX3030MxPA10 (EX3030RM-P) |
| Switching Capacity | 420 Gbps |
| Forwarding Rate | 120 Mpps |
| Access Ports | 24 × 2.5G/1G Ethernet ports |
| PoE Support | 802.3af/at/bt |
| PoE Ports | 24 ports with up to 90 W per port |
| Uplink Ports | 6 × 25G SFP28 |
| MAC Address Table | 32K |
| Packet Buffer | 3 MB |
| VLANs | 4K simultaneous VLANs |
| QinQ | Yes |
| QoS Priority Queues | 8 |
| Link Aggregation | 8 LAGs with 8 ports per LAG |
| Routing Capability | Layer 2 and Layer 3 |
| Static Routes | 64 |
| Dynamic Routing Entries | 512 |
| IGMP Multicast Groups | 512 |
| Ingress/Egress ACLs | 512 |
| ARP Entries | 1000 |
| Flash Storage | 256 MB |
| DRAM | 1 GB |
| Management Platform | cnMaestro Cloud or On‑Premises |
| Deployment | Zero‑touch provisioning |
| Power Supplies | Dual removable power supplies |
| Cooling | 3 internal fans |
| Rack Mounting | Rack mount kit included |
| Details | |
|---|---|
| Power Supply | CRPS Modules Sold Separately |
| Mounting Hardware | 1U Rackmount Kit Included |
cnMaestro
RJ45 , SFP28 , USB
PoE (802.3af/at) , POE (802.3bt)
