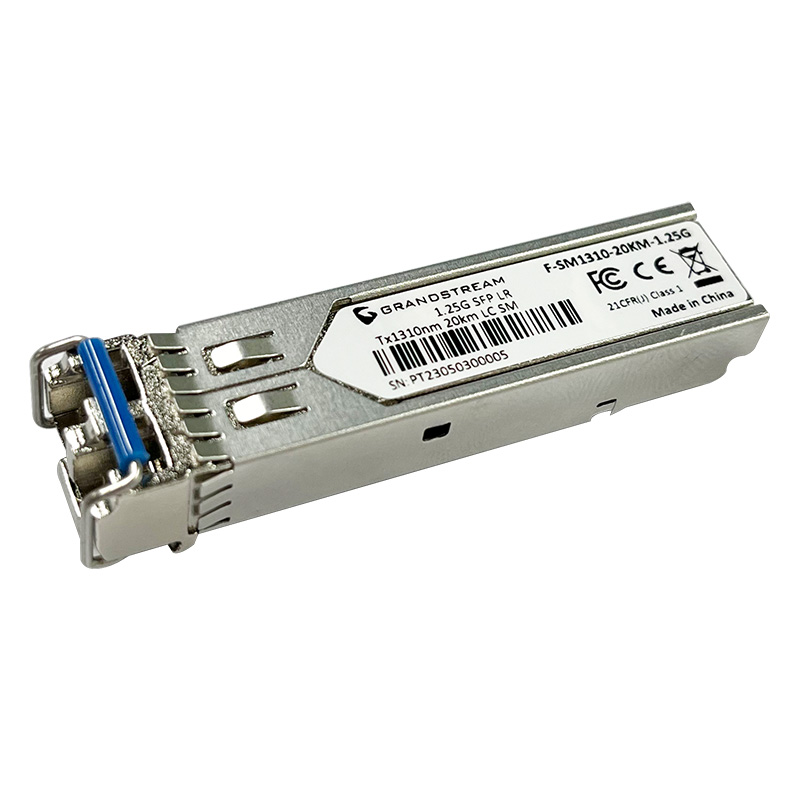

Grandstream SFP Fiber Module, Single-Mode, 1310nm, 20-Kilometer, 1.25Gbps, LC
Features
- Please select the fiber cable according to the module type. The multi-mode module corresponds to the multi-mode fiber, and the single-mode module corresponds to the single-mode fiber.
- Please select the same wavelength fiber cable for connection.
- Please select an appropriate fiber module according to the actual networking situation to meet different transmission distance requirements.
- The laser of the Class 1 Laser Product is harmful to eyes. Do not look directly at the fiber connectors.
| Details | |
|---|---|
| Manufacturer's Code | F-SM1310-20KM-1.25G |
| Fiber Mode | Single-Mode Fibre |
| Connector Type | Duplex LC |
| DDM | Yes, I2C for integrated Digital Diagnostic Monitoring |
| Nominal Wavelength | 1310nm |
| Data Rate | 1.25Gbps SFP |
| Max Power Consumption | 1W |
| Transfer Distance | 20km |
| TX Power | -9 to -3dBm, ±3dB |
| RX Power | -18 to -1dBm, ±3dB |
| Operation Voltage | 3.3V±0.3V |
| Environmental | Operation: 0℃ to 70℃, humidity: 5% to 85%, Storage: -40℃ to 85℃ |
| Unit Weight | 17.10g |
| Standards | SFF-8472, SFP MSA, IEEE 802.3z, RoHS-6 |
| Compliance | FCC, CE, FDA |
| Details |
|---|
1Gbps
LC , SFP
PoE (802.3af/at)
