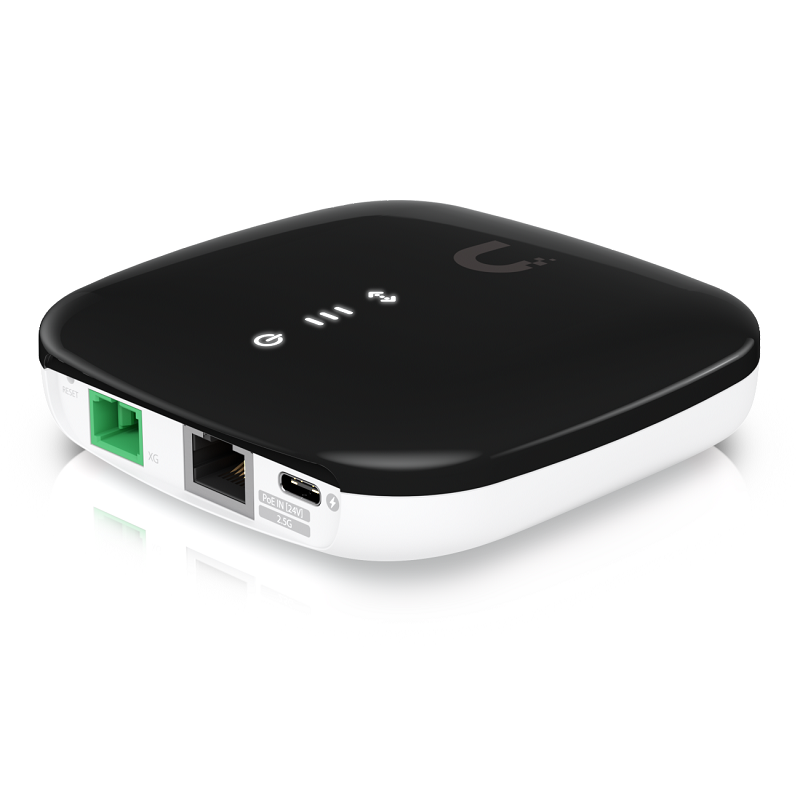

Ubiquiti UISP Fiber XG-PON Optical Network Unit. An optical network unit that can deliver 2.5Gbps uplink/10Gbps downlink speeds over distances up to 20 km.
Features
- (1) XG-PON port
- (1) 2.5GbE RJ45 LAN port and 24V PoE in
| Details | |
|---|---|
| Manufacturer's Code | UISP-FIBER-XG |
| Operating wavelength | TX: 1,270nm, RX: 1,577nm |
| Line code | Scrambled NRZ |
| Physical reach | 20 km |
| Networking interface | (1) SC/APC, ITU-G.987 XGPON WAN port, (1) 100/1,000/2,500 MbE RJ45 LAN ports |
| Management interface | Ethernet in-band, PON |
| PoE interface | (1) PoE in, 24V DC passive PoE |
| Memory | 256 MB DDR |
| Onboard flash storage | 32 MB NOR |
| Max. power consumption | 6W |
| Power method | USB-C 5V DC, 3A, 24V DC passive PoE |
| Power supply | 5V DC, 3A power adapter |
| Passive PoE | 2-pair (4, 5+; 7, 8-) |
| Supported voltage range | 5V DC adapter, 10–30V DC passive PoE |
| Total non-blocking line rate | Downstream: 9.95 Gbit/s, Upstream: 2.44 Gbit/s |
| Normal TX range of optical module | 2 to 7dBm |
| Normal RX range of optical module | -9 to -27dBm |
| Button | (1) Factory reset |
| Dimensions | 100 x 100 x 27 mm (3.9 x 3.9 x 1.1") |
| Weight | 220 g (0.49 lb) |
| Enclosure material | UV-stabilized polycarbonate |
| Operating temperature | -15 to 45° C (5 to 113° F) |
| Operating humidity | 10 to 95% non-condensing |
| Certifications | CE, FCC, IC |
| Details | |
|---|---|
| Included | 5V 2.4A USB-C Power Supply |
RJ45 , SC
PoE (non standard)
