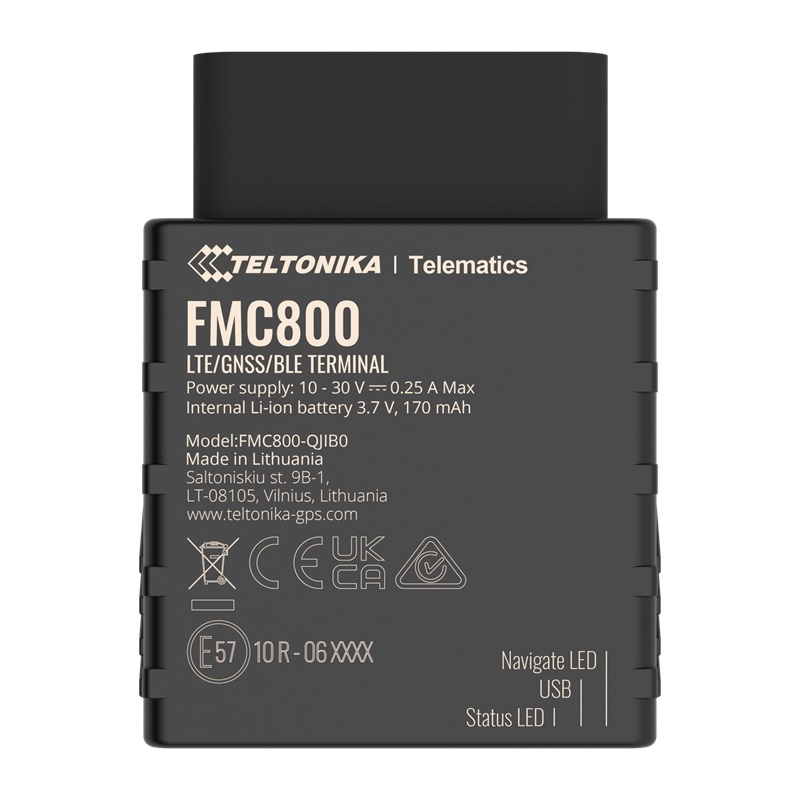

Teltonika FMC800 OBDII Plug and Play 4G LTE Cat1 Tracker. FMx8 series devices are EASY to use and FAST to install. The number “8” brings everything together in one place and stands out with its simplicity of basic tracking. Teltonika FMC800 tracker is a small OBDII Plug and Play device with 4G LTE Cat 1 and BLUETOOTH connectivity. An extremely fast and easy installation allows connecting device in a few seconds! No tools or engineers are required for installation.
Crash detection functionality based on 3-axis built-in accelerometer with fully configurable parameters through our software to ensure accurate crash trace data. Bluetooth LE-based wireless connection of external devices, including Low Energy beacons and sensors, to monitor temperature, humidity, magnet detection, and movement.
Crash detection functionality based on 3-axis built-in accelerometer with fully configurable parameters through our software to ensure accurate crash trace data. Bluetooth LE-based wireless connection of external devices, including Low Energy beacons and sensors, to monitor temperature, humidity, magnet detection, and movement.
Features
- Simply plug the device in OBD-II port and start tracking
- Achieve efficient fuel consumption, prolong vehicle life and increase road safety with eco driving scenario
- Crash detection functionality based on 3-axis built-in accelerometer
| Details | |
|---|---|
| Product Code | FMC800TPNJ01 |
| Module | FMC800-QJIB0: Quectel EG915U-EU with Teltonika TM2500 |
| Technology | LTE CAT 1/GSM/GPRS/GNSS/BLUETOOTH LE |
| 4G LTE bands | FMC800-QJIB0: LTE FDD: B1/B3/B7/B8/B20/B28 |
| Data transfer | LTE: LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL), GSM: GPRS: Max 85.6Kbps (DL)/Max 85.6Kbps (UL) |
| Data support | SMS (TEXT, PDU), Network protocols (TCP, UDP, TLS, MQTT) |
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS |
| GNSS Receiver | 33 channel |
| Tracking sensitivity | -165 dBM |
| Position Accuracy | < 2.5 m CEP |
| Velocity Accuracy | < 0.1 m/s (within +/- 15% error) |
| Hot start | < 1 s |
| Warm start | < 25 s |
| Cold start | < 35 s |
| Connection | OBDII socket |
| GNSS antenna | Internal High Gain |
| GSM antenna | Internal High Gain |
| USB 2.0 | Micro-USB |
| LED indication | 2 status LED lights |
| SIM | Micro-SIM |
| Memory | 128MB internal flash memory |
| Input voltage range | 10 - 30 V DC with overvoltage protection |
| Internal Back-up battery | 170 mAh Li-Ion battery 3.7 V (0.63 Wh) |
| Internal fuse | 3 A, 125 V |
| Regulatory | FMC800-QJIB0: CE RED, E-Mark, RCM |
| Details |
|---|
4G , Bluetooth , GPS/GNSS
Tracker
600-999MHz , 1700-2100MHz , 2.4GHz
PoE (non standard)
