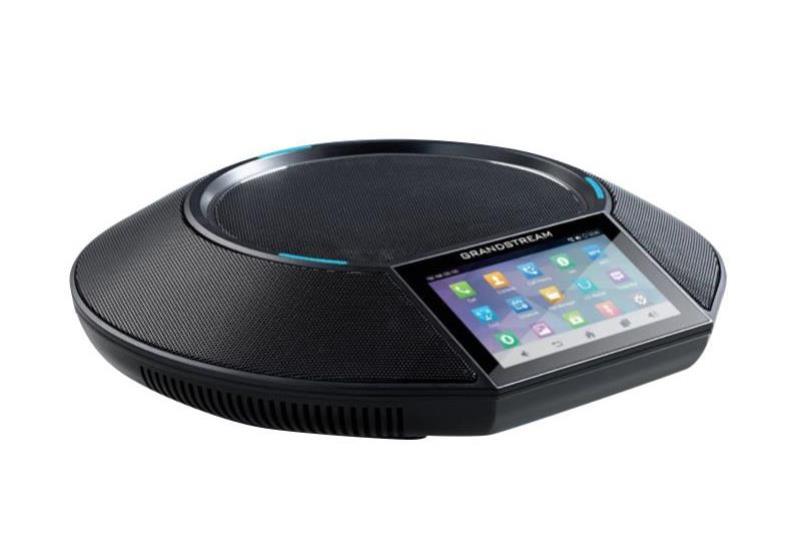

The GAC2500 is the ideal conference room VoIP solution as it delivers superb audio quality to all participants throughout conference rooms, board rooms and offices. It features support for 6 lines with up to 6 SIP accounts, a 4.3” capacitive touch screen, Gigabit Ethernet speeds, 7-way voice conferencing and daisy chain support. The Android-based GAC2500 offers full access to all apps within the Google Play Store, including popular apps such as Skype and Google Hangouts. The GAC2500 delivers HD audio quality, automated provisioning for easy deployment, advanced security protection for privacy and broad interoperability with most 3rd party SIP devices and leading SIP/NGN/IMS platforms.
Features
- Runs Android 4.4 and offers full access to the Google Play Store; Create custom Android apps
- Auto-sensing 10/100/1000mbps network port
- Built-in Bluetooth for syncing headsets and mobile devices
- Built-in PoE+ to power the device and give it a network connection
- Built-in 802.11n Wireless support offers mobility
- Supports 6 SIP accounts and 7-way voice conferencing
- HD audio to maximise audio quality
- 4.3 inch (800x480) capacitive touch screen
- TLS and SRTP security encryption technology to protect calls and accounts
| Details | |
|---|---|
| Manufacturer's Product Code | GAC2500 |
| Protocols/Standards | SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPV6 (pending), OpenVPN (pending) |
| Network Interface | Auto-sensing Gigabit Ethernet port with integrated PoE+ (IEEE 802.3at Class4) |
| Bluetooth | Yes, integrated. Bluetooth 4.0 |
| Video Outputs | Yes, integrated. 802.11b/g/n |
| Microphone/Speaker | 3 cardioid microphones; 12 ft. pickup distance, Frequency: 220-14,000 Hz Volume: Up to 86 dB at 0.5 meter |
| Auxiliary Ports | 3.5mm audio port, USB Micro-B, RJ48 daisy chain port |
| Graphic Display | 4.3” IPS LCD with 800x480 resolution |
| Voice Codecs | Support for G.711µ/a, G.722, G.726, iLBC, Opus, G.722.1 and G.722.1c (pending), in-band and out-of-band DTMF (In audio, RFC2833, SIP INFO) |
| Telephony Features | 6 SIP accounts, hold, transfer, forward, 7-way conference, call park, call pickup, downloadable phonebook (XML, LDAP, up to 2000 items), call waiting, call log (up to 500 records), XML customisation of screen, auto answer, click-to-dial, flexible dial plan, hot desking, personalised music ringtones and music on hold, server redundancy and fail-over |
| Sample Applications | Skype, Google Hangouts, Skype for Business (Lync), Web browser, Adobe Flash, Facebook, Twitter, YouTube, Google calendar, mobile phone data import/export via Bluetooth, etc. API/SDK available for advanced custom application development |
| QoS | Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, Di Serv, MPLS) QoS. |
| Security | User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media access control |
| Upgrade/Provisioning | Firmware upgrade via TFTP / HTTP / HTTPS or local HTTP upload, mass provisioning using TR-069 or AES encrypted XML configuration file |
| Power & Green Energy Efficiency | Universal Power Supply:Input:100-240VAC 50-60Hz; Output:12VDC,2A (24W)å |
| Details | |
|---|---|
| Power Supply | 12VDC/2A PSU |
| Ethernet Cable | Yes |
| Other Accessories | USB Cable, RJ48 Cascade Cable |
2.4GHz
802.11b , 802.11g , 802.11n , Bluetooth
1Gbps
PoE (802.3af/at)
