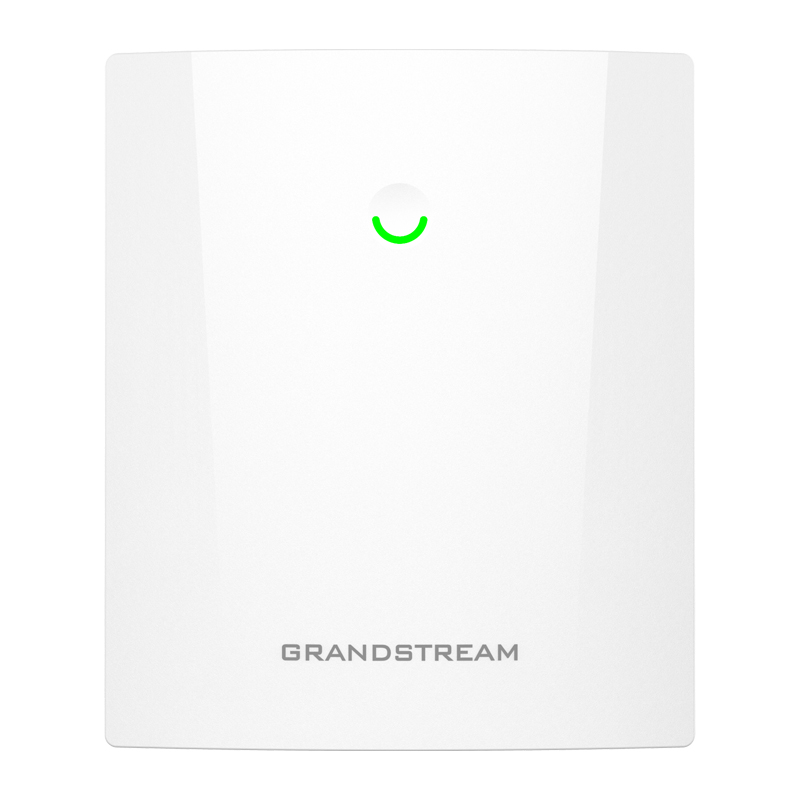

Grandstream GWN7660ELR 2x2 802.11ax Wi-Fi 6 Outdoor Long Range Access Point, AX3000, Bluetooth, Integrated Antenna
The GWN7660ELR is an enterprise-grade long range Wi-Fi 6 access point that allows businesses to build next-generation Wi-Fi networks for high-density environments. It supports weatherproof casing and heat resistant technology, dual-band 2×2:2 MU-MIMO with XTRA Range technology and a sophisticated antenna design for maximum network throughput that supports 256 clients and an expanded 300-meter coverage range. It also provides IP67 weatherproof and dust-proof ability, as well as -30 to 60°C operating temperature, this ensures that the Wi-Fi 6 access point can operate properly in difficult weather conditions. To ensure easy installation and management, the GWN7660ELR includes a built-in controller embedded within the product’s web user interface. It is also supported by GWN.Cloud and GWN Manager, Grandstream’s free cloud and on-premise Wi-Fi management platform. The GWN7660ELR is the ideal Wi-Fi AP for voice-over-Wi-Fi deployment and offers a seamless connection with Grandstream’s Wi-Fi voice and video IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals, Bluetooth® Low Energy (BLE) 5.2, a gigabit Ethernet port with PoE/PoE+ and a 2.5 Gigabit SFP port with PoE/PoE+. The GWN7660ELR is an ideal outdoor Wi-Fi access point for enterprises, multiple floor offices, warehouses, hospitals, schools, and more.
The GWN7660ELR is an enterprise-grade long range Wi-Fi 6 access point that allows businesses to build next-generation Wi-Fi networks for high-density environments. It supports weatherproof casing and heat resistant technology, dual-band 2×2:2 MU-MIMO with XTRA Range technology and a sophisticated antenna design for maximum network throughput that supports 256 clients and an expanded 300-meter coverage range. It also provides IP67 weatherproof and dust-proof ability, as well as -30 to 60°C operating temperature, this ensures that the Wi-Fi 6 access point can operate properly in difficult weather conditions. To ensure easy installation and management, the GWN7660ELR includes a built-in controller embedded within the product’s web user interface. It is also supported by GWN.Cloud and GWN Manager, Grandstream’s free cloud and on-premise Wi-Fi management platform. The GWN7660ELR is the ideal Wi-Fi AP for voice-over-Wi-Fi deployment and offers a seamless connection with Grandstream’s Wi-Fi voice and video IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals, Bluetooth® Low Energy (BLE) 5.2, a gigabit Ethernet port with PoE/PoE+ and a 2.5 Gigabit SFP port with PoE/PoE+. The GWN7660ELR is an ideal outdoor Wi-Fi access point for enterprises, multiple floor offices, warehouses, hospitals, schools, and more.
Features
- 3 Gbps aggregate wireless throughput, 1 Gbps RJ45, and 2.5 Gbps SFP wireline ports
- Dual-band 2x2:2 MIMO with OFDMA technology
- Self-power adaptation upon auto-detection of PoE or PoE+
- Support 256 concurrent Wi-Fi client devices
- MediaTek Wi-Fi Chipset
- Up to 300-meter coverage range
- Advanced QoS to ensure real-time performance of low-latency applications
- Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
- Flexibility of 5 internal antennas
- Embedded controller manages up to 50 local GWN APs; GWN.Cloud offers unlimited AP management, & GWN Manager offers on-premise software AP management
| Details | |
|---|---|
| Manufacturer's Code | GWN7660ELR |
| Wi-Fi Standards | IEEE 802.11 b/g/n/ac/ax |
| Antennas | 5 individual internal antennas; 2.4GHz x 2, gain 5.5 dBi; 5 GHz x 2, gain 6.0 dBi; BT gain 4.5 dBi |
| Frequency Bands | 2.4GHz radio: 2412 - 2484 MHz, 5GHz radio: 5180 - 5825 MHz *Not all frequency bands can be used in all regions |
| Channel Bandwidth | 2.4GHz: 20 and 40 MHz, 5GHz: 20, 40, 80 and 160 MHz |
| System Security | WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/ control lockdown via digital signatures, unique security certificate and random default password per device |
| MU-MIMO | 2×2:2 2.4GHz, 2×2:2 5GHz |
| Coverage Range | Up to 300 meters *Coverage range can vary based on environment |
| Maximum TX Power | 5GHz: 26dBm, 2.4GHz: 27dBm *Maximum power varies by country, frequency band, and MCS rate |
| Maximum RX Sensitivity | 2.4GHz: -96dBm, 5GHz: -90dBm |
| SSIDs | 32 SSIDs total, 16 per radio (2.4GHz & 5GHz) |
| Concurrent Clients | 256 |
| Network Interfaces | 1x 1G Port and 1x 2.5G SFP |
| Port Bluetooth | BLE 5.2 |
| Auxiliary Ports | 1x Reset Pinhole, 1x Kensington lock |
| Mounting | Wall mount or pole mount, kits included |
| LEDs | 1 tri-color LED for device tracking and status indication; 1 single-color LED for SFP |
| Network Protocols | IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM |
| QoS | 802.11e/WMM, VLAN, TOS |
| Network Management | Embedded controller can manage up to 50 local GWN APs, GWN.Cloud offers a free cloud management platform for unlimited GWN APs, GWN Manager offers premise-based software controller for up to 3,000 GWN APs |
| Power and Green Energy Efficiency | PoE 802.3af/ 802.3at; Maximum Power Consumption: 13W (Not Included) |
| Environmental | Operation:-30°Cto 60°C, Storage: -30°C to 70°C, Humidity: 5% to 95% Non-condensing |
| Physical | Unit Dimension: 270mm x 230mm x 57mm, Unit (including brackets): 1kg, Entire Package Dimension: 439mm x 329mm x 137mm, Entire Package Weight: 2.4kg |
| Weatherproof Grade | IP67-level weatherproof capability when installed vertically |
| Details | |
|---|---|
| Package Content | GWN7660ELR AP, Mounting Kits, Quick Installation Guide |
2.4GHz , 5GHz
Wi-Fi 6
1Gbps
RJ45 , SFP
PoE (802.3af/at)
GDMS/GWN Cloud
