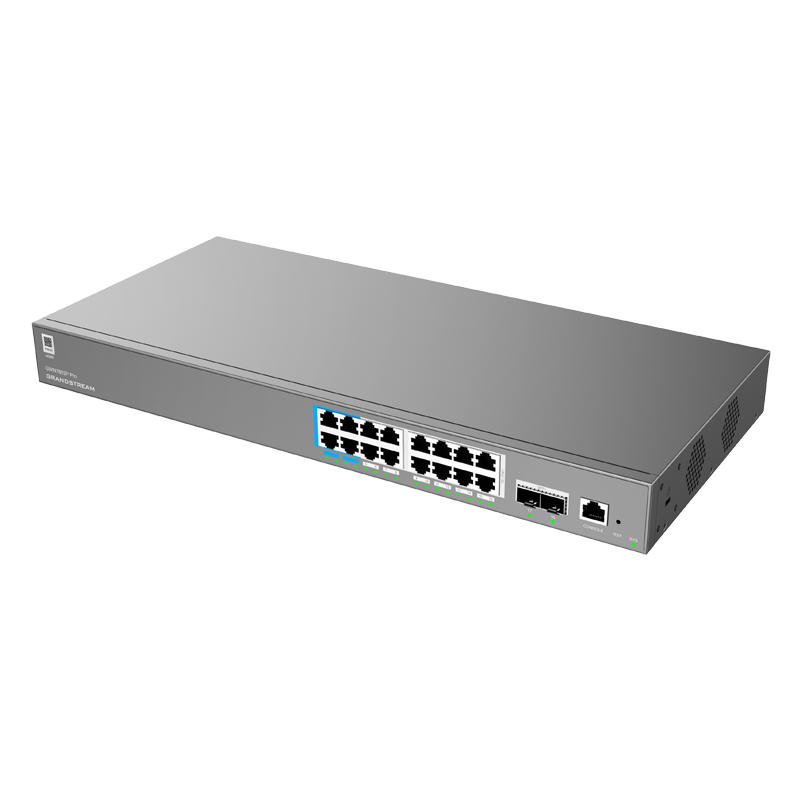

Grandstream GWN7802P Pro Enterprise Layer 2+ Managed PoE Network Switch, 16 x GigE, 2 x SFP+, 250 Watt PoE++
The GWN7800 Pro Series are layer 2++ managed network switches that allow small-to-medium businesses to build scalable, secure, and high-performance business networks that are fully manageable. The Pro Series provides high-speed SFP or SFP+ ports, as well as double the RAM and CPU of the GWN7800 Series, allowing it to support demanding business networks with switching capabilities up to 216Gbps.
The GWN7800 Pro Series includes an advanced VLAN for flexible and sophisticated network traffic segmentation, advanced QoS for prioritization of network traffic, IGMP/MLD Snooping for network performance optimization, and comprehensive security capabilities against potential attacks.
The PoE-capable models provide smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints.
The GWN7800 Pro Series supports a variety of free and flexible management options, including cloud management with GDMS Networking, on-premise software management with GWN Manager, the embedded controller in their web user interface, GWN Series Routers, and command-line interface (CLI). By providing high-speed SFP and SFP+ ports, advanced control and segmentation of network traffic, powerful security protection, and flexible management options, the GWN7800 Pro Series are ideal for small to medium businesses.
The GWN7800 Pro Series are layer 2++ managed network switches that allow small-to-medium businesses to build scalable, secure, and high-performance business networks that are fully manageable. The Pro Series provides high-speed SFP or SFP+ ports, as well as double the RAM and CPU of the GWN7800 Series, allowing it to support demanding business networks with switching capabilities up to 216Gbps.
The GWN7800 Pro Series includes an advanced VLAN for flexible and sophisticated network traffic segmentation, advanced QoS for prioritization of network traffic, IGMP/MLD Snooping for network performance optimization, and comprehensive security capabilities against potential attacks.
The PoE-capable models provide smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints.
The GWN7800 Pro Series supports a variety of free and flexible management options, including cloud management with GDMS Networking, on-premise software management with GWN Manager, the embedded controller in their web user interface, GWN Series Routers, and command-line interface (CLI). By providing high-speed SFP and SFP+ ports, advanced control and segmentation of network traffic, powerful security protection, and flexible management options, the GWN7800 Pro Series are ideal for small to medium businesses.
Features
- All models include high-speed SFP or SFP+ ports 8, 16, 24 or 48 Gigabit Ethernet ports
- Offers double the RAM and CPU of the GWN7800 Series
- Smart power control to support dynamic PoE/PoE+/PoE++ (on select models) and power allocation per port for the PoE-capable models
- ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
- Flexible management options include the controller embedded in their WebUI, GDMS Networking (cloud), GWN Manager (software), GWN Series Routers, and CLI
| Details | |
|---|---|
| Product Code | GWN7802P-PRO |
| Gigabit Ethernet Ports | 16 |
| SFP/SFP+ Ports | 2x SFP+ |
| Maximum Amount of Supported Modules | SM-10G: 2, MM-10G: 2, RJ45-10G: 2 |
| MGMT Ports | 1x Console port |
| Auxiliary Ports | 1x Reset Pinhole |
| System LEDs | 1x tri-color LED for device tracking and status indication |
| Power Supply LEDs | Nil |
| Data Transferring LEDs | 18x green-color LEDs |
| PoE Supply LEDs | 16x yellow-color LEDs |
| Flash | 32MB Nor Flash |
| RAM | 256MB RAM |
| CPU | Single-core, MIPS interAptiveTM 1GHz |
| Forwarding Mode | Store-and-forward |
| Total non-blocking throughput | 36Gbps |
| Switching Capability | 72Gbps |
| Forwarding Rate | 53.568Mpps |
| Packet Buffer | 8.4Mb |
| Network Latency | <4µs |
| Power Supply | 100-240V~ 50/60Hz |
| Redundant Power Supply | Nil |
| External Redundant Power Supply RPS | Nil |
| Max Power Consumption | 21.8W, 294.4W(PoE 250W) |
| Max Output Power | 294.4W |
| PoE Standards | IEEE 802.3af/at/bt |
| Number of PoE Ports | 16 |
| Max Output Power per PoE Port | 60W |
| Max Total PoE | Output Power 250W |
| Network Protocol | IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af/at/bt, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1d, IEEE 802.1w, IEEE 802.1s, IEEE 802.1x |
| Stacking | No |
| Switching | Jumbo frame (maximum length: 12288), 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, QinQ, MAC-based VLAN, Protocol-based VLAN, Voice VLAN including auto voice VLAN, tagged OUI and untagged OUI, GVRP(pending), ERPS(pending), Spanning tree, support STP/RSTP/MSTP/PVST(+)/RPVST(+), 16 instances for MSTP/PVST(+)/RPVST(+), 16K MAC addresses including static, dynamic and filtering MAC address, Link aggregation, including static and LACP, Up to max 8 LAG groups and up to 8 members per LAG group |
| IP Service | DHCP client, DHCP server, DHCP relay and DHCP snooping, • DHCPv6 client and DHCPv6 snooping, ND snooping, DNS, 64 ARP/NDP, including static and dynamic ARP/NDP, dynamic ARP/NDP, 16 VLAN virtual interfaces with 9216 MTU |
| Unit Dimension | 440mm(L) × 200mm(W) × 44mm(H) |
| Unit Weight | 2.9kg |
| Mounting | Desktop, Wall-Mount, or Rack-Mount (rack-mounting kits included) |
| Temperature | Operation 0°C to 45°C, Storage: -10°C to 60°C |
| Humdity | Operation 10% to 90% RH(Non-condensing), Storage: 5% to 95% RH(Non-condensing) |
| MTBF | 70,000H |
| Fan | 2 |
| CPU Monitoring | Montioring CPU usage, over-CPU usage alarming |
| Memory Usage | Monitoring memery usage, over-memory usage alarming |
| Power Supply Monitoring | Monitoring of power supply model and status, Power supply failure alarming |
| Fan Monitoring | Automatic speed adjustment, Fan failure alarming |
| Temperature Monitoring | Temperature monitoring, over-temperature alarming |
| Management Platform | Local Web GUI: embedded controller, GDMS Networking: free cloud management platform for unlimited GWN7800 Pro series switches, GWN Manager: premise-based software controller, GWN APP: integrated GDMS Networking and GWN Manager to manage GWN7800 Pro series switches via the APP, Management Protocol: SNMP, RMON, TR-069 (pending) |
| Surge Protection | ± 6KV CM for power, ± 4KV CM for network ports |
| ESD | ± 12KV for contact discharge |
| Compliance | FCC, CE, RCM, IC |
| Details | |
|---|---|
| Included | 1x Switch, 1x 25cm Ground Cable, 4x Rubber Footpads, 1x Power Cord Anti-Trip, 8x Screws (KM3*6), 1x 1.2m(10A) AC Cable, 1x Simplified Quick Installation Guide, 1x Regulatory Paper |
GDMS/GWN Cloud
1Gbps
RJ45 , SFP+
PoE (802.3af/at) , POE (802.3bt)
