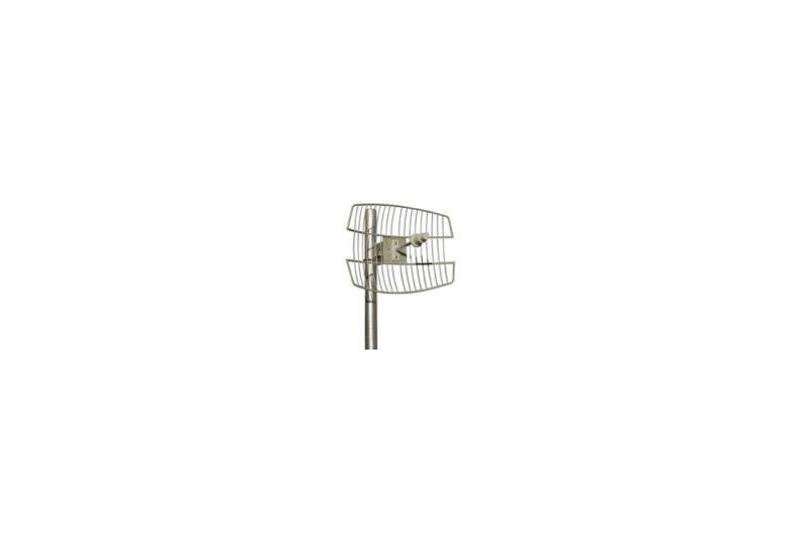

The GD58-29 5.8Ghz 29dBi 5.725Ghz - 5.850Ghz Parabolic grid directional antennas made by Pacific Wireless utilize a unique parabolic grid design with a high performance feed. The antennas are constructed of welded steel wires which are galvanized and then powder coat painted with a light gray epoxy paint. The wire grid semi-parabolic design offers unsurpassed low wind loading while maintaining good RF performance. The antenna comes with a bulkhead N Female connector. Quality heavy duty construction from Pacific Wireless USA.
| Details | |
|---|---|
| Manufacturer's Product Code | GD58-29 |
| Frequency Range | 5725-5850MHz |
| Gain | 29dBi |
| Polarisation | Vertical or Horizontal |
| Vertical Beamwidth | 5deg |
| Horizontal Beamwidth | 4deg |
| Connector Type | N-Type Female |
| Dimensions | 724x914mm |
| Pole Mount Diameter | 25-50mm |
| Details | |
|---|---|
| Pole Mount | Included |
| Warranty | Standard 12 Month RTB |
N-Type
5GHz
